QU-BraTS: MICCAI BraTS 2020 Challenge on Quantifying Uncertainty in Brain Tumor Segmentation – Analysis of Ranking Scores and Benchmarking Results

Raghav Mehta1, Angelos Filos2, Ujjwal Baid3,4,5, Chiharu Sako3,4, Richard McKinley6, Michael Rebsamen6, Katrin Dätwyler6,7, Raphael Meier8, Piotr Radojewski6, Gowtham Krishnan Murugesan9, Sahil Nalawade9, Chandan Ganesh9, Ben Wagner9, Fang F. Yu9, Baowei Fei10, Ananth J. Madhuranthakam9,11, Joseph A. Maldjian9,11, Laura Daza12, Catalina Gómez12, Pablo Arbeláez12, Chengliang Dai13, Shuo Wang13, Hadrien Reynaud13, Yuanhan Mo13, Elsa Angelini14, Yike Guo13, Wenjia Bai13,15, Subhashis Banerjee16,17,18, Linmin Pei19, Murat AK19, Sarahi Rosas-González20, Ilyess Zemmoura20,21, Clovis Tauber20, Minh H. Vu22, Tufve Nyholm22, Tommy Löfstedt23, Laura Mora Ballestar24, Veronica Vilaplana24, Hugh McHugh25,26, Gonzalo Maso Talou27, Alan Wang25,27, Jay Patel28,29, Ken Chang28,29, Katharina Hoebel28,29, Mishka Gidwani28, Nishanth Arun28, Sharut Gupta28, Mehak Aggarwal28, Praveer Singh28, Elizabeth R. Gerstner28, Jayashree Kalpathy-Cramer28, Nicolas Boutry30, Alexis Huard30, Lasitha Vidyaratne31, Md Monibor Rahman31, Khan M. Iftekharuddin31, Joseph Chazalon32, Elodie Puybareau32, Guillaume Tochon32, Jun Ma33, Mariano Cabezas34, Xavier Llado34, Arnau Oliver34, Liliana Valencia34, Sergi Valverde34, Mehdi Amian35, Mohammadreza Soltaninejad36, Andriy Myronenko37, Ali Hatamizadeh37, Xue Feng38, Quan Dou38, Nicholas Tustison39, Craig Meyer38,39, Nisarg A. Shah40, Sanjay Talbar41, Marc-André Weber42, Abhishek Mahajan43, Andras Jakab44, Roland Wiest6,45, Hassan M. Fathallah-Shaykh46, Arash Nazeri47, Mikhail Milchenko47,48, Daniel Marcus47,48, Aikaterini Kotrotsou49, Rivka Colen49, John Freymann50,51, Justin Kirby50,51, Christos Davatzikos3,4, Bjoern Menze52,53, Spyridon Bakas3,4,5, Yarin Gal2, Tal Arbel1,54
1: Centre for Intelligent Machines (CIM), McGill University, Montreal, QC, Canada, 2: Oxford Applied and Theoretical Machine Learning (OATML) Group, University of Oxford, Oxford, England, 3: Center for Biomedical Image Computing and Analytics (CBICA), University of Pennsylvania, Philadelphia, PA, USA, 4: Department of Radiology, Perelman School of Medicine at the University of Pennsylvania, Philadelphia, PA, USA, 5: Department of Pathology and Laboratory Medicine, Perelman School of Medicine, University of Pennsylvania, Philadelphia, PA, USA, 6: Support Center for Advanced Neuroimaging (SCAN), University Institute of Diagnostic and Interventional Neuroradiology, University of Bern, Inselspital, Bern University Hospital, Bern, Switzerland, 7: Human Performance Lab, Schulthess Clinic, Zurich, Switzerland, 8: armasuisse S+T, Thun, Switzerland, 9: Department of Radiology, University of Texas Southwestern Medical Center, Dallas, TX, USA, 10: Department of Bioengineering, University of Texas at Dallas, Texas, USA, 11: Advanced Imaging Research Center, University of Texas Southwestern Medical Center, Dallas, TX, USA, 12: Universidad de los Andes, Bogotá, Colombia, 13: Data Science Institute, Imperial College London, London, UK, 14: NIHR Imperial BRC, ITMAT Data Science Group, Imperial College London, London, UK, 15: Department of Brain Sciences, Imperial College London, London, UK, 16: Machine Intelligence Unit, Indian Statistical Institute, Kolkata, India, 17: Department of CSE, University of Calcutta, Kolkata, India, 18: Division of Visual Information and Interaction (Vi2), Department of Information Technology, Uppsala University, Uppsala, Sweden, 19: Department of Diagnostic Radiology, The University of Pittsburgh Medical Center, Pittsburgh, PA, USA, 20: UMR U1253 iBrain, Université de Tours, Inserm, Tours, France, 21: Neurosurgery department, CHRU de Tours, Tours, France, 22: Department of Radiation Sciences, Umeå University, Umeå, Sweden, 23: Department of Computing Science, Umeå University, Umeå, Sweden, 24: Signal Theory and Communications Department, Universitat Politècnica de Catalunya, BarcelonaTech, Barcelona, Spain, 25: Faculty of Medical and Health Sciences, University of Auckland, Auckland, New Zealand, 26: Radiology Department, Auckland City Hospital, Auckland, New Zealand, 27: Auckland Bioengineering Institute, University of Auckland, New Zealand, 28: Athinoula A. Martinos Center for Biomedical Imaging, Department of Radiology, Massachusetts General Hospital, Boston, MA, USA, 29: Massachusetts Institute of Technology, Cambridge, MA, USA, 30: EPITA Research and Development Laboratory (LRDE), France, 31: Vision Lab, Electrical and Computer Engineering, Old Dominion University, Norfolk, VA 23529, USA, 32: EPITA Research and Development Laboratory (LRDE), Le Kremlin-Bicêtre, France, 33: School of Science, Nanjing University of Science and Technology, 34: Research Institute of Computer Vision and Robotics, University of Girona, Spain, 35: Department of Electrical and Computer Engineering, University of Tehran, Iran, 36: School of Computer Science, University of Nottingham, UK, 37: NVIDIA, Santa Clara, CA, US, 38: Biomedical Engineering, University of Virginia, Charlottesville, USA, 39: Radiology and Medical Imaging, University of Virginia, Charlottesville, USA, 40: Department of Electrical Engineering, Indian Institute of Technology - Jodhpur, Jodhpur, India, 41: SGGS Institute of Engineering and Technology, Nanded, India, 42: Institute of Diagnostic and Interventional Radiology, Pediatric Radiology and Neuroradiology, University Medical Center Rostock, Rostock, German, 43: Tata Memorial Centre, Homi Bhabha National Institute, Mumbai, India, 44: Center for MR-Research, University Children’s Hospital Zurich, Zurich, Switzerland, 45: Institute for Surgical Technology and Biomechanics, University of Bern, Bern, Switzerland, 46: Department of Neurology, The University of Alabama at Birmingham, Birmingham, AL, USA, 47: Department of Radiology, Washington University, St. Louis, MO, USA, 48: Neuroimaging Informatics and Analysis Center, Washington University, St. Louis, MO, USA, 49: Department of Diagnostic Radiology, University of Texas MD Anderson Cancer Center, Houston, TX, USA, 50: Leidos Biomedical Research, Inc, Frederick National Laboratory for Cancer Research, Frederick, MD, USA, 51: Cancer Imaging Program, National Cancer Institute, National Institutes of Health, Bethesda, MD, USA, 52: Department of Quantitative Biomedicine, University of Zurich, Zurich, Switzerland, 53: Department of Informatics, Technical University of Munich, Munich, Germany, 54: MILA - Quebec Artificial Intelligence Institute, Montreal, QC, Canada
Publication date: 2022/08/26
https://doi.org/10.59275/j.melba.2022-354b
PDF · Code · Video · arXiv

Abstract

Deep learning (DL) models have provided the state-of-the-art performance in a wide variety of medical imaging benchmarking challenges, including the Brain Tumor Segmentation (BraTS) challenges. However, the task of focal pathology multi-compartment segmentation (e.g., tumor and lesion sub-regions) is particularly challenging, and potential errors hinder the translation of DL models into clinical workflows. Quantifying the reliability of DL model predictions in the form of uncertainties, could enable clinical review of the most uncertain regions, thereby building trust and paving the way towards clinical translation. Recently, a number of uncertainty estimation methods have been introduced for DL medical image segmentation tasks. Developing scores to evaluate and compare the performance of uncertainty measures will assist the end-user in making more informed decisions. In this study, we explore and evaluate a score developed during the BraTS 2019-2020 task on uncertainty quantification (QU-BraTS), and designed to assess and rank uncertainty estimates for brain tumor multi-compartment segmentation. This score (1) rewards uncertainty estimates that produce high confidence in correct assertions, and those that assign low confidence levels at incorrect assertions, and (2) penalizes uncertainty measures that lead to a higher percentages of under-confident correct assertions. We further benchmark the segmentation uncertainties generated by 14 independent participating teams of QU-BraTS 2020, all of which also participated in the main BraTS segmentation task. Overall, our findings confirm the importance and complementary value that uncertainty estimates provide to segmentation algorithms, and hence highlight the need for uncertainty quantification in medical image analyses. Our evaluation code is made publicly available at https://github.com/RagMeh11/QU-BraTS

Keywords

Uncertainty Quantification · Trustworthiness · Segmentation · Brain Tumors · Deep Learning · Neuro-Oncology · Glioma · Glioblastoma

Bibtex @article{melba:2022:026:mehta, title = "QU-BraTS: MICCAI BraTS 2020 Challenge on Quantifying Uncertainty in Brain Tumor Segmentation – Analysis of Ranking Scores and Benchmarking Results", author = "Mehta, Raghav and Filos, Angelos and Baid, Ujjwal and Sako, Chiharu and McKinley, Richard and Rebsamen, Michael and Dätwyler, Katrin and Meier, Raphael and Radojewski, Piotr and Murugesan, Gowtham Krishnan and Nalawade, Sahil and Ganesh, Chandan and Wagner, Ben and Yu, Fang F. and Fei, Baowei and Madhuranthakam, Ananth J. and Maldjian, Joseph A. and Daza, Laura and Gómez, Catalina and Arbeláez, Pablo and Dai, Chengliang and Wang, Shuo and Reynaud, Hadrien and Mo, Yuanhan and Angelini, Elsa and Guo, Yike and Bai, Wenjia and Banerjee, Subhashis and Pei, Linmin and AK, Murat and Rosas-González, Sarahi and Zemmoura, Ilyess and Tauber, Clovis and Vu, Minh H. and Nyholm, Tufve and Löfstedt, Tommy and Ballestar, Laura Mora and Vilaplana, Veronica and McHugh, Hugh and Maso Talou, Gonzalo and Wang, Alan and Patel, Jay and Chang, Ken and Hoebel, Katharina and Gidwani, Mishka and Arun, Nishanth and Gupta, Sharut and Aggarwal, Mehak and Singh, Praveer and Gerstner, Elizabeth R. and Kalpathy-Cramer, Jayashree and Boutry, Nicolas and Huard, Alexis and Vidyaratne, Lasitha and Rahman, Md Monibor and Iftekharuddin, Khan M. and Chazalon, Joseph and Puybareau, Elodie and Tochon, Guillaume and Ma, Jun and Cabezas, Mariano and Llado, Xavier and Oliver, Arnau and Valencia, Liliana and Valverde, Sergi and Amian, Mehdi and Soltaninejad, Mohammadreza and Myronenko, Andriy and Hatamizadeh, Ali and Feng, Xue and Dou, Quan and Tustison, Nicholas and Meyer, Craig and Shah, Nisarg A. and Talbar, Sanjay and Weber, Marc-André and Mahajan, Abhishek and Jakab, Andras and Wiest, Roland and Fathallah-Shaykh, Hassan M. and Nazeri, Arash and Milchenko, Mikhail and Marcus, Daniel and Kotrotsou, Aikaterini and Colen, Rivka and Freymann, John and Kirby, Justin and Davatzikos, Christos and Menze, Bjoern and Bakas, Spyridon and Gal, Yarin and Arbel, Tal", journal = "Machine Learning for Biomedical Imaging", volume = "1", issue = "August 2022 issue", year = "2022", pages = "1--54", issn = "2766-905X", doi = "https://doi.org/10.59275/j.melba.2022-354b", url = "https://melba-journal.org/2022:026" }
RISTY - JOUR AU - Mehta, Raghav AU - Filos, Angelos AU - Baid, Ujjwal AU - Sako, Chiharu AU - McKinley, Richard AU - Rebsamen, Michael AU - Dätwyler, Katrin AU - Meier, Raphael AU - Radojewski, Piotr AU - Murugesan, Gowtham Krishnan AU - Nalawade, Sahil AU - Ganesh, Chandan AU - Wagner, Ben AU - Yu, Fang F. AU - Fei, Baowei AU - Madhuranthakam, Ananth J. AU - Maldjian, Joseph A. AU - Daza, Laura AU - Gómez, Catalina AU - Arbeláez, Pablo AU - Dai, Chengliang AU - Wang, Shuo AU - Reynaud, Hadrien AU - Mo, Yuanhan AU - Angelini, Elsa AU - Guo, Yike AU - Bai, Wenjia AU - Banerjee, Subhashis AU - Pei, Linmin AU - AK, Murat AU - Rosas-González, Sarahi AU - Zemmoura, Ilyess AU - Tauber, Clovis AU - Vu, Minh H. AU - Nyholm, Tufve AU - Löfstedt, Tommy AU - Ballestar, Laura Mora AU - Vilaplana, Veronica AU - McHugh, Hugh AU - Maso Talou, Gonzalo AU - Wang, Alan AU - Patel, Jay AU - Chang, Ken AU - Hoebel, Katharina AU - Gidwani, Mishka AU - Arun, Nishanth AU - Gupta, Sharut AU - Aggarwal, Mehak AU - Singh, Praveer AU - Gerstner, Elizabeth R. AU - Kalpathy-Cramer, Jayashree AU - Boutry, Nicolas AU - Huard, Alexis AU - Vidyaratne, Lasitha AU - Rahman, Md Monibor AU - Iftekharuddin, Khan M. AU - Chazalon, Joseph AU - Puybareau, Elodie AU - Tochon, Guillaume AU - Ma, Jun AU - Cabezas, Mariano AU - Llado, Xavier AU - Oliver, Arnau AU - Valencia, Liliana AU - Valverde, Sergi AU - Amian, Mehdi AU - Soltaninejad, Mohammadreza AU - Myronenko, Andriy AU - Hatamizadeh, Ali AU - Feng, Xue AU - Dou, Quan AU - Tustison, Nicholas AU - Meyer, Craig AU - Shah, Nisarg A. AU - Talbar, Sanjay AU - Weber, Marc-André AU - Mahajan, Abhishek AU - Jakab, Andras AU - Wiest, Roland AU - Fathallah-Shaykh, Hassan M. AU - Nazeri, Arash AU - Milchenko, Mikhail AU - Marcus, Daniel AU - Kotrotsou, Aikaterini AU - Colen, Rivka AU - Freymann, John AU - Kirby, Justin AU - Davatzikos, Christos AU - Menze, Bjoern AU - Bakas, Spyridon AU - Gal, Yarin AU - Arbel, Tal PY - 2022 TI - QU-BraTS: MICCAI BraTS 2020 Challenge on Quantifying Uncertainty in Brain Tumor Segmentation – Analysis of Ranking Scores and Benchmarking Results T2 - Machine Learning for Biomedical Imaging VL - 1 IS - August 2022 issue SP - 1 EP - 54 SN - 2766-905X DO - https://doi.org/10.59275/j.melba.2022-354b UR - https://melba-journal.org/2022:026 ER -

2022:026 cover


Disclaimer: the following html version has been automatically generated and the PDF remains the reference version. Feedback can be sent directly to publishing-editor@melba-journal.org

1 Introduction

Machine learning groups often struggle to gain access to large-scale annotated medical imaging datasets for training and testing their algorithms. As a result, many researchers rely on smaller proprietary datasets, making it challenging to show the full potential of their algorithms and even more challenging to compare their results against other published methods. Therefore, medical image analysis challenges (Menze et al., 2015; Bakas et al., 2018; Simpson et al., 2019; Antonelli et al., 2021; Kurc et al., 2020; Orlando et al., 2020; Codella et al., 2019; Bernard et al., 2018; Sun et al., 2021; Heller et al., 2021; Pati et al., 2021; Müller and Clough, 2005; del Toro et al., 2014; Heimann et al., 2009) play a pivotal role in developing machine learning algorithms for medical image analysis by making large-scale, carefully labeled, multi-center, real-world datasets publicly available for training, testing, and comparing machine learning algorithms. In particular, the Brain Tumor Segmentation (BraTS) challenge has provided the community with a benchmarking platform to compare segmentation methods for over ten years, increasing the dataset size each year (Menze et al., 2015; Bakas et al., 2017c, 2018; Baid et al., 2021). The availability of the dataset, and the challenge itself, have permitted the development of many new successful deep learning based approaches such as the DeepMedic (Kamnitsas et al., 2016, 2017) and the nnU-Net (Isensee et al., 2018, 2021).

Despite their success in many medical image analysis challenges, the resulting deep learning algorithms are typically not translated into the clinical setting for various reasons. One problem is that most deep learning models produce deterministic outputs. That is, they do not communicate the uncertainties associated with their predictions. This is problematic in the challenging context of segmenting pathological structures (e.g., tumors, lesions), as even the top-performing methods produce errors. Providing uncertainties associated with the machine learning predictions could permit the end-user (e.g., clinician) to review and correct the model predictions where the model is not certain about its predictions.

Bayesian Deep Learning provides a popular framework to allow deep learning models to generate predictions and their associated uncertainties  (Neal, 2012; Abdar et al., 2021). Recent advances (Gal and Ghahramani, 2016; Lakshminarayanan et al., 2017; Blei et al., 2017; Blundell et al., 2015) in Bayesian Deep Learning have led to widespread adaptations of the frameworks for different tasks in medical image analysis (Karimi et al., 2019; Bian et al., 2020; Dalca et al., 2018). There are recent attempts to evaluate uncertainties associated with model predictions in medical image analysis (Nair et al., 2020; Araújo et al., 2020; Ghesu et al., 2019; Tardy et al., 2019; Filos et al., 2019; Menze et al., 2020), which quantifies whether these uncertainties can adequately capture model confidence in these domains. To the best of our knowledge, there has not yet been a single unified approach to evaluate the model uncertainties in the context of medical image segmentation.

The main focus of this work is three-fold: i) to develop an uncertainty evaluation score with a down-stream clinical goal in mind; ii) to benchmark the various participating teams from a recent BraTS challenge (Bakas et al., 2018), using the developed evaluation score; and iii) to make the associated evaluation code publicly available for future benchmarking of Bayesian Deep Learning methods for medical image segmentation. In particular, we focus on developing an uncertainty evaluation criterion for brain tumor segmentation. We aim to develop a Computer-Aided Diagnosis (CAD) system where the pathology size is smaller than the surrounding healthy tissue. In this context, the objectives are that the uncertainty estimates associated with an automatic segmentation system reflect that the system is (a) confident when correct and (b) uncertain when incorrect. These criteria would mainly permit uncertain predictions to be flagged and brought to the attention of the clinical expert, rather than overburdening the expert by having to review the entirety of the prediction. To this end, we present the resulting uncertainty evaluation score (Mehta et al., 2020) and the rankings and results for 14 teams participating in the Quantification of Uncertainty for Brain Tumor Segmentation (QU-BraTS) 2020 challenge. The various analyses of the methods and results produced by the different teams highlight the necessity of the different components of our developed score. The results indicate that the segmentation results and the associated uncertainties give complementary information as teams performing well on one task do not necessarily perform well on the other. Qualitative results show that the developed score measures the desired real-world properties for tumor segmentation uncertainties.

2 Related Work

Recent works (Kendall and Gal, 2017; Der Kiureghian and Ditlevsen, 2009) show that uncertainties associated with the outputs of a machine learning model are primarily divided into two sub-types: (i) Epistemic uncertainty, which captures the uncertainty associated with the model parameters, and (ii) Aleatoric uncertainty, which captures the uncertainty inherent in the data. The epistemic uncertainty captures our ignorance about which model generated our collected data. This uncertainty can be reduced to zero if the model is provided with an infinite amount of data, permitting the model parameters to learn the true distribution of the data generation model. The aleatoric uncertainty could result from measurement noise, for example, and therefore cannot be reduced even with more data collection. Both epistemic and aleatoric uncertainties play essential roles in medical image analysis. Epistemic uncertainty indicates where to trust the model output (Nair et al., 2020; Araújo et al., 2020), and aleatoric uncertainty reflects the prevalent noise in the data (Shaw et al., 2021).

Several recent papers (Ghesu et al., 2019; Nair et al., 2020; Tardy et al., 2019; Kendall et al., 2015) show cases where uncertainty estimates correlate with errors in a machine learning model. These results show promise that estimating uncertainties make a better adaptation of deep learning models in real-world scenarios possible. However, in the medical image analysis field, to date, there is an unmet need to (1) systemically quantify and compare how well different uncertainty estimates properly communicate the degree of confidence in the output and (2) to rank the performance of competing estimates, given the objectives of the task and the requirements during a clinical review.

The most popular metrics for measuring model confidence output are the expected calibration error (ECE) and the maximum calibration error (MCE) (Wen et al., 2020; Ashukha et al., 2020). These metrics are useful for quantitatively measuring model calibration. However, these metrics are based on the softmax probabilities. Furthermore, a simple post-processing technique like temperature scaling (Guo et al., 2017) can make a deterministic and a probabilistic model equally calibrated. ECE and MCE metrics cannot differentiate between these temperature-calibrated models.

In another paper, Lakshminarayanan et al. (2017) evaluate the usefulness of the predictive uncertainty for decision making by evaluating the model output only in cases where the model’s confidence is above a user-specified threshold. Their main idea is that if the confidence estimates are well-calibrated on the data distribution seen during training, one can trust the model predictions when the reported confidence is high and result to a different solution when the model is not confident. They showed that when the model is evaluated on its most confident prediction, the model accuracy is high compared to when the model is evaluated on all outputs. Though this is encouraging and allows for the comparison of different uncertainty generation methods, it does not consider how many model outputs were discarded at a certain threshold. Using this criterion, a model which has low accuracy but high uncertainty when evaluated on all predictions is rewarded. This model is undesirable in a practical scenario, and leading to the rejection of most of its predictions to achieve high accuracy.

Mukhoti and Gal (2018) designed a metric to quantify uncertainty for the task of semantic segmentation. They made the following assumption during the metric design: if a model is confident about its prediction, it should be accurate, which implies that if a model is inaccurate on output, it should be uncertain. With this in mind, they calculate the following two probabilities at different uncertainty thresholds: (i) p(accurate|||certain): the probability that the model is accurate on its output given that it is confident; (ii) p(uncertain|||inaccurate): the probability that the model is uncertain about its output given that it has made a mistake in its prediction (i.e., is inaccurate). They used the metric to compare different BDL methods for the semantic segmentation task. Though this metric is useful for semantic segmentation, where each pixel in an image is labelled as one class, it is not useful for the task of pathology segmentation where there is a high class-imbalance problem and the number of pixels (voxels) of interest (pathology) is low compared to the background-healthy class. For example, in the brain tumour segmentation task, 99.9% of the voxels belong to the background (healthy tissue) while only 0.1% belongs to the foreground (pathology). Due to a high class imbalance, p(accurate|||certain) would be dominated by healthy (background) voxels, most of which can be accurately classified with high certainty.

Hall et al. (2020) developed a metric, Probability-based Detection Quality (PDQ), to evaluate the uncertainty estimate for the object detection task. The authors combine the class labelling measure (i.e., label quality) and the bounding box detection measure (i.e., spatial quality) into the metric. Here, spatial quality measures how well the detection describes where the object is within the image. Label quality measures how effectively a detection identifies the object class. These are averaged over all possible combinations of bounding boxes and labels generated using multiple samples. The authors also organized a challenge associated with this task at the Annual Conference on Computer Vision and Pattern Recognition (CVPR) 2019. The paper and its associated challenge (Sünderhauf et al., 2019) illustrate the importance of developing uncertainty quantification metrics that are tailored to the task of interest.

Jungo et al. (2020) made the first step towards quantifying uncertainty for the brain tumor segmentation task. They compared various uncertainty generation methods such as MC-Dropout, Deep Ensemble (Gal and Ghahramani, 2016; Lakshminarayanan et al., 2017), and others, using the standard metrics like ECE, MCE, and reliability diagrams. In addition, they proposed a new metric, Uncertainty-Error (U-E) overlap. The results showed that Deep Ensemble could produce more reliable uncertainty measures than other methods.

3 Uncertainty Evaluation Score

This work focuses on the publicly available BraTS challenge dataset (Menze et al., 2015; Bakas et al., 2018, 2017c), which consists of both High-Grade Glioma (HGG) and Low-Grade Glioma (LGG) cases, as described in the previous BraTS manuscripts and on The Cancer Imaging Archive (TCIA) (Clark et al., 2013). However, this naming convention is now obsolete. Following the 2021 World Health Organization (WHO) classification of tumors of the central nervous system (CNS) (Louis et al., 2021), the data provided by the BraTS challenge should be described as including: 1) adult-type diffuse gliomas, 2) pediatric-type diffuse low-grade gliomas, and 3) pediatric-type high-grade gliomas. The adult-type diffuse gliomas in the BraTS dataset comprise Glioblastoma (IDH-wildtype, CNS WHO grade 4) and Astrocytoma (IDH-mutant, CNS WHO grades 2-4). Ground truth labels generated and signed off by clinical experts are provided for each patient case and consist of 3 tumor sub-regions: enhancing tumor core, necrotic core, and peritumoral edematous/infiltrated tissue (here onward referred to as edema) (Bakas et al., 2018). However, focusing on the clinical relevance, the submitted algorithms are not evaluated on each of these tumor sub-regions but on higher-level tumor entities that relate directly to the surgical and radiotherapy importance. Specifically, the tumor entities considered during the evaluation and ranking of algorithms are: (i) the enhancing tumor core (ET), (ii) the tumor core (TC), which consists of the union of ET and the necrotic core, and (iii) the whole tumor (WT), which consists of all three sub-regions namely edema, necrotic core, and enhancing tumor core, and radiographically is defined by the abnormal FLAIR signal envelope. The performance of the automatic segmentation methods is finally evaluated using the Dice Similarity coefficient (referred to as DSC𝐷𝑆𝐶DSC from here onward) and the 95th percentile of the Hausdorff distance between the predicted labels and the provided ground truth.

The objective of the uncertainty quantification task was to evaluate and rank the uncertainty estimates for the task of brain tumor segmentation. To this end, each team provided their output labels for the multi-class segmentation task and the estimated voxel-wise uncertainties for each of the associated tumor entities, namely, WT, TC, and ET. These uncertainties were required to be normalized in the range of 010001000-100 for ease of computation. For each tumor entity, the uncertain voxels were filtered at N𝑁N predetermined uncertainty threshold values τ1,..,N\tau_{1,..,N}, and the model performance was assessed based on the metric of interest (i.e., the DSC𝐷𝑆𝐶DSC in this case) of the remaining voxels at each of these thresholds (τ1,..,N\tau_{1,..,N}). For example, τ=75𝜏75\tau=75 implies that all voxels with uncertainty values 75absent75\geq 75 are marked as uncertain, and the associated predictions are filtered out and not considered for the subsequent DSC𝐷𝑆𝐶DSC calculations. In other words, the DSC𝐷𝑆𝐶DSC values are calculated for the remaining predictions of the unfiltered voxels. This evaluation rewards models where the confidence in the incorrect assertions (i.e., False Positives, denoted FPs, and False Negatives, denoted FNs) is low and high for correct assertions (i.e., True Positives, denoted TPs, and True Negatives, denoted TNs). For these models, it is expected that as more uncertain voxels are filtered out, the DSC𝐷𝑆𝐶DSC score, calculated only on the remaining unfiltered voxels, increases.

Although the criterion mentioned above helps measure performance in terms of DSC𝐷𝑆𝐶DSC, the metric of interest, it does not keep track of the total number of filtered voxels at each threshold. In real practice, an additional penalty should be provided to a system that filters out many voxels at a low threshold to achieve high performance on the metric of interest, as it will increase the reviewing burden on clinical raters. One solution is to add a penalty based on the total number of filtered voxels at each uncertainty threshold. This strategy is also not ideal as it will also penalize methods that filter out FPs/FNs, areas where mistakes are made. Instead, the evaluation method chosen penalizes methods that filter out only the correctly predicted voxels (i.e., TP and TN). Given that the specific tumor segmentation task has a high-class imbalance between pathological and healthy tissue, different penalties are assigned to TPs and TNs. The ratio of filtered TPs (FTP) is estimated at different thresholds (τ1,..,N\tau_{1,..,N}) and is measured relative to the unfiltered values (τ=100𝜏100\tau=100) such that FTP = (TP100subscriptTP100\text{TP}_{\text{100}} - TPτsubscriptTP𝜏\text{TP}_{\tau}) / TP100subscriptTP100\text{TP}_{\text{100}}. The ratio of filtered TNs is calculated similarly. This evaluation essentially penalizes approaches that filter out a large percentage of TP or TN relative to τ=100𝜏100\tau=100 voxels (i.e., more uncertain about correct assertions) to attain the reported DSC𝐷𝑆𝐶DSC value, thereby rewarding approaches with a lower percentage of uncertain TPs/TNs.

Refer to caption
Figure 1: Effect of uncertainty thresholding on two different example patient MRI slices (Row-1 and Row-2) for whole tumor (WT) segmentation. (a) T2-FLAIR MRI. (b) WT Ground Truth (c) Overall Model Prediction (d) Results with No filtering, Uncertainty Threshold = 100. (e) Uncertainty Threshold = 75 (f) Uncertainty Threshold = 50 (g) Uncertainty Threshold = 25. It is desired that with decrease in the uncertainty threshold, more False Positives (blue) and False Negative (red) voxels are filtered out (marked as uncertain - yellow) while True Positive (green) and True Negative voxels remain unfiltered.
Table 1: Change in DSC𝐷𝑆𝐶DSC, Filtered True Positives (FTP) ratio, and Filtered True Negatives (FTN) ratio with change in uncertainty thresholds for two different example slices shown in Figure 1.
DSC𝐷𝑆𝐶DSC
DSC𝐷𝑆𝐶DSC at 100 (baseline)DSC𝐷𝑆𝐶DSC at 75DSC𝐷𝑆𝐶DSC at 50DSC𝐷𝑆𝐶DSC at 25
Example-10.940.960.9650.97
Example-20.920.9550.970.975
Ratio of Filtered TPs (1 - (TPxsubscriptTP𝑥\text{TP}_{x} / TPbaseline (τ=100)subscriptTPbaseline (τ=100)\text{TP}_{\text{baseline ($\tau$=100)}}))
FTP at 100FTP at 75FTP at 50FTP at 25
Example-10.000.000.050.1
Example-20.000.000.150.25
Ratio of Filtered TNs (1 - (TNxsubscriptTN𝑥\text{TN}_{x} / TNbaseline (τ=100)subscriptTNbaseline (τ=100)\text{TN}_{\text{baseline ($\tau$=100)}}))
FTN at 100FTN at 75FTN at 50FTN at 25
Example-10.000.00150.00160.0019
Example-20.000.00150.00260.0096

Figure 1 and Table 1 depict qualitative examples and their associated quantitative results. Here, decreasing the threshold (τ𝜏\tau) leads to filtering out voxels with incorrect assertions. This filtering, in turn, leads to an increase in the DSC𝐷𝑆𝐶DSC value for the remaining voxels. Example 2 indicates a marginally better DSC𝐷𝑆𝐶DSC value than the slice in example 1 at uncertainty thresholds (τ𝜏\tau) 50 and 25. However, the Ratio of FTPs and FTNs indicates that this is at the expense of marking more TPs and TNs as uncertain.

To ensure that the generated output segmentations are directly associated with the BraTS challenge protocol, the generated uncertainties are expected to be produced for these ”binary” tumor entities, i.e., ET, TC, and WT. The associated uncertainties are evaluated using the scores defined above for each tumor entity.

Finally, the resulting uncertainty measures for each team are ranked according to a unified score which combines the area under three curves: 1) DSC𝐷𝑆𝐶DSC vs τ𝜏\tau, 2) FTP vs τ𝜏\tau, and 3) FTN vs τ𝜏\tau, for different values of τ𝜏\tau. The unified score is calculated as follows:

scoretumor_entity=AUC1+(1AUC2)+(1AUC3)3.subscriptscoretumor_entity𝐴𝑈subscript𝐶11𝐴𝑈subscript𝐶21𝐴𝑈subscript𝐶33\text{score}_{\text{tumor\_entity}}=\frac{{AUC}_{1}+(1-{AUC}_{2})+(1-{AUC}_{3})}{3}.(1)

In the context of the BraTS uncertainty evaluation task (QU-BraTS), the score is estimated for each tumor entity separately and then used to rank the participating methods.

3.1 A 3D U-Net Based Experiment

Refer to caption
Figure 2: Effect of changing uncertainty threshold (τ𝜏\tau) on WT for entropy measure. Specifically, we plot (left) DSC𝐷𝑆𝐶DSC, (middle) Filtered True Positive Ratio, and (right) Filtered True Negative Ratio as a function of 100 - τ𝜏\tau. We plot the curves for six different uncertainty generation methods, namely, MC-Dropout, Deep Ensemble, Dropout Ensemble, Bootstrap, Dropout Bootstrap, and Deterministic. All methods use entropy as a measure of uncertainty.

Experiments were devised to show the functioning of the derived uncertainty evaluations and rankings. A modified 3D U-Net architecture (Çiçek et al., 2016; Mehta and Arbel, 2018) generates the segmentation outputs and corresponding uncertainties. The network was trained (n=228𝑛228n=228), validated (n=57𝑛57n=57), and tested (n=50𝑛50n=50) based on the publicly available BraTS 2019 training dataset (n=335𝑛335n=335) (Menze et al., 2015; Bakas et al., 2018, 2017c, 2017a, 2017b). The performances of WT segmentation with the entropy uncertainty measure (Gal et al., 2017), which captures the average amount of information contained in the predictive distribution, are shown in Figure 2. Here uncertainties are estimated using MC-Dropout (Gal and Ghahramani, 2016), Deep Ensemble (Lakshminarayanan et al., 2017), Dropout Ensemble (Smith and Gal, 2018), Bootstrap, Dropout Bootstrap, and a Deterministic softmax entropy measure. Dropout bootstrap shows the best DSC𝐷𝑆𝐶DSC performance (highest AUC) and has the worst performance for FTP and FTN curves (highest AUC). This result shows that the higher performance in DSC𝐷𝑆𝐶DSC is at the expense of a higher number of filtered correct voxels. Overall, the score is working in line with the objectives. However, there is no clear winner amongst these uncertainty methods in terms of rankings.

4 BraTS 2020 Quantification of Uncertainty (QUBraTS) challenge – Materials and Methods

4.1 Dataset

The BraTS 2020 challenge dataset (Menze et al., 2015; Bakas et al., 2018, 2017c, 2017a, 2017b) is divided into three cohorts: Training, Validation, and Testing. The Training dataset is composed of multi-parametric MRI (mpMRI) scans from 369 diffuse glioma patients. Each mpMRI set contains four different sequences: native T1-weighted (T1), post-contrast T1-weighted (T1ce), T2-weighted (T2), and T2 Fluid-Attenuated-Inversion-Recovery (FLAIR). Each MRI volume is skull-stripped (also known as brain extraction) (Thakur et al., 2020), co-aligned to a standard anatomical atlas (i.e., SRI24 (Rohlfing et al., 2010)), and resampled to 1mm31𝑚superscript𝑚31mm^{3} voxel resolution. Expert human annotators provided GT tumor labels, consisting of 3 classes described previously. Note that there is no ”ground-truth” uncertainty label.

The BraTS 2020 Validation cohort is composed of 125 cases of patients with diffuse gliomas. Similar to the training dataset, this also contains four different mpMRI sequences for each case. The validation dataset allows participants to obtain preliminary results in unseen data and their cross-validated results on the training data. The GT labels for the validation data are not provided to the participants.

The BraTS 2020 Testing cohort is then used for the final ranking of the participating team. It is comprised of a total of 166 cases. The exact type of glioma is not revealed to the participating teams. Each team gets a window of 48 hours to upload their results to the challenge evaluation platform (https://ipp.cbica.upenn.edu/) (Davatzikos et al., 2018).

4.2 Evaluation framework

The University of Pennsylvania Image Processing Portal (https://ipp.cbica.upenn.edu/) is used to evaluate all BraTS participating algorithms quantitatively. This portal allows the registration of new teams to access the BraTS datasets and the framework for automatically evaluating all participating algorithms on all three (i.e., training, validation, and testing) cohorts111Access to the BraTS testing datasets is not possible after the conclusion of the challenge.. In addition to the IPP, and in favor of reproducibility and transparency, we implement the quantitative evaluation of uncertainty publicly available through GitHub222https://github.com/RagMeh11/QU-BraTS. As mentioned previously, the evaluation framework expects the challenge participants to provide multi-class brain tumor segmentation labels and their associated voxel-wise uncertainties for three tumor entities: whole tumor (WT), tumor core (TC), and enhancing tumor (ET). These uncertainties are expected to be normalized between 0-100 for ease of computation.

4.3 Participating Methods

In total, 14 teams participated in the QU-BraTS 2020 challenge. All teams utilized a Convolutional Neural Network (CNN) based approach for the tumor segmentation task and the generation of associated uncertainty maps. Detailed descriptions of 12/14 proposed approaches are given below333Two teams, namely Frankenstein (Duncan et al., 2021) and NSU-btr (Groza et al., 2021), withdrew from participating in this paper.. Details regarding the CNN segmentation architectures utilized by each team are not described in detail here, as this paper focuses on uncertainty generation methods rather than the segmentation itself. Readers are requested to refer to each team’s individual papers (as cited below) for more details about the CNN architecture used for the segmentation task. A preliminary version of the QU-BraTS challenge was run in conjunction with the BraTS 2019 challenge. Appendix B provides details about the participating teams and their performance. We did not include the analysis results of the QU-BraTS 2019 challenge. The task was run as a preliminary task without employing any statistical significance analysis ranking scheme to evaluate the participating teams.

4.3.1 Method-1: Team SCAN (McKinley et al., 2021)

The method uses the DeepSCAN (McKinley et al., 2019) model. The training of the model was performed using a combination of focal loss (Lin et al., 2020) and a Kullback-Leibler divergence: for each voxel and each tumor entity, the model produces an output p(0,1)𝑝01p\in(0,1) (corresponding to the output of a standard binary classification network) and an output q(0,0.5)𝑞00.5q\in(0,0.5) which represents the probability that the classifier output differs from the ground truth on that tumor entity. The probability q𝑞q is supervised by the label z𝑧z, which is the indicator function for disagreement between the classifier (thresholded at the p=0.5𝑝0.5p=0.5 level) and the ground truth. Given q𝑞q, an annealed version of the ground truth is formed, w=(1x)q+x(1q)𝑤1𝑥𝑞𝑥1𝑞w=(1-x)\cdot q+x\cdot(1-q). Focal KL divergence between w𝑤w and p𝑝p is defined as follows:

FocalKL(w||p)=(pw)2(wlog(w)wlog(p)).\text{Focal}_{\text{KL}}(w||p)=(p-w)^{2}(w\cdot log(w)-w\cdot log(p)).

The final loss function is given by:

Loss=0.1Focal(p,x)+0.9FocalKL(w||p)+0.9BCE(q,z).\text{Loss}=0.1\cdot\text{Focal}(p,x)+0.9\cdot\text{Focal}_{\text{KL}}(w||p)+0.9\cdot\text{BCE}(q,z).

An ensemble of the networks was utilized in the final output, where from different predictions, p𝑝p and q𝑞q were combined to a single probability qIp0.5+(1q)Ip0.5𝑞subscript𝐼𝑝0.51𝑞subscript𝐼𝑝0.5q\cdot I_{p\leq 0.5}+(1-q)I_{p\geq 0.5}. The final uncertainty output (denoted q𝑞q above) was normalized into the range of 0 to 100: 100(12q)10012𝑞100*(1-2q). The uncertainty in the ensemble can likewise be extracted as for any ordinary model with a sigmoid output x𝑥x as: 100(12|0.5x|)100120.5𝑥100\cdot(1-2|0.5-x|)

While this uncertainty measure gives a measure of uncertainty both inside and outside the provided segmentation, it was empirically observed that treating all positive predictions as certain and only assigning uncertain values to only negative predictions gives better performance on the challenge scores.

4.3.2 Method-2: Team Alpaca (Murugesan et al., 2021)

An ensemble of three different 2D segmentation networks (Huang et al., 2017; Chen et al., 2019; Hu et al., 2020) was used. The softmax probabilities from each of the three networks were averaged to generate the final probability maps. These probability maps were used to generate the uncertainty maps for each tumor entity. This was computed by mapping the most confident prediction value to 0 and the least confident value to 100.

4.3.3 Method-3: Team Uniandes (Daza et al., 2021)

A novel deep learning architecture named Cerberus was proposed. The uncertainty maps were produced by taking the compliment of the final segmentation softmax probability maps, and rescaling them between 0 and 100.

4.3.4 Method-4: Team DSI_Med (Dai et al., 2021)

Five attention-gated U-Net models were trained. The uncertainty maps were normalised between 0 and 100 for the four nested tumor entities. For each uncertainty map, the maximum softmax probability from the five models for each voxel in each entity was taken. The voxels were either part of the given nested entity or not, judging by the segmentation maps acquired from the ensemble of five models. The probabilities of those voxels that belong to the nested entity were inverted and multiplied by 100. The results were then rounded to get into the 0-100 range.

Double thresholds were further applied to refine the uncertainty maps. Low and high probability thresholds for each nested entity were empirically defined: WT(0.1, 0.3), TC(0.2, 0.3) ET(0.3, 0.5). For each voxel that belongs to a nested entity, the uncertainty was set to 0 when the probability was higher than the corresponding high threshold. For each voxel that belongs to the background, the uncertainty was set to 0 when the maximum probability was lower than the low threshold. Such a method enabled the adjustment of the uncertainty of nested entities and the background independently.

4.3.5 Method-5: Team Radiomics_MIU (Banerjee et al., 2019a)

The method used an ensemble of three different CNNs (Wang et al., 2018; Banerjee et al., 2019b; Doshi et al., 2019) for segmentation. Different models were trained for three different tumor entities (i.e., WT, TC, and ET segmentation). Three model ensembles were used, i.e., a total of nine models were trained for the task. Averaging various probabilities is one of the best and most effective ways to get a prediction of the ensemble model in classification. The uncertainty was estimated using the concept of entropy to represent voxel-wise variance and diversity information. The resulting uncertainty values were scaled to lie between 0 and 100.

4.3.6 Method-6: Team Med_vision (Pei et al., 2021)

The method proposed self-ensemble-resUNet. The output softmax probabilities (ypredsubscript𝑦predy_{\text{pred}}) were inverted and normalized between 0-100 to obtain the uncertainty maps (Upredsubscript𝑈predU_{\textbf{pred}}): Upred=100(1ypred)subscript𝑈pred1001subscript𝑦predU_{\text{pred}}=100\cdot(1-y_{\text{pred}})

4.3.7 Method-7: Team Jaguars (Rosas-González et al., 2021)

The method used an ensemble of a total of 7 U-Net type models. The output probabilities of each model were averaged for each label in each voxel to obtain a new probability for the ensemble. Since the model makes a binary classification of each voxel, the highest uncertainty corresponds with a probability of 0.5. Then the normalized entropy was used to get an uncertainty measure of the prediction for each voxel:

H=cCpclog(pc)log(|C|)[0,1],𝐻subscript𝑐𝐶subscript𝑝𝑐subscript𝑝𝑐𝑙𝑜𝑔𝐶01H=\sum_{c\in C}\frac{p_{c}\cdot\log(p_{c})}{log(|C|)}\in[0,1],

where pcsubscript𝑝𝑐p_{c} is the sigmoid output average probability of class c and C is the set of classes, (C = {0,1} in this case). These values were multiplied by 100 to normalize it between 0 and 100.

4.3.8 Method-8: Team UmU (Vu et al., 2021)

The method proposes a Multi-Decoder Cascaded Network to predict the probability of the three tumor entities. An uncertainty score, ui,j,krsubscriptsuperscript𝑢𝑟𝑖𝑗𝑘u^{r}_{i,j,k}, at voxel (i,j,k)𝑖𝑗𝑘(i,j,k) was defined by:

ui,j,kr={200(1pi,j,kr),ifpi,j,kr0.5200pi,j,kr,ifpi,j,kr<0.5subscriptsuperscript𝑢𝑟𝑖𝑗𝑘cases2001subscriptsuperscript𝑝𝑟𝑖𝑗𝑘ifsubscriptsuperscript𝑝𝑟𝑖𝑗𝑘0.5200subscriptsuperscript𝑝𝑟𝑖𝑗𝑘ifsubscriptsuperscript𝑝𝑟𝑖𝑗𝑘0.5u^{r}_{i,j,k}=\begin{cases}200\cdot(1-p^{r}_{i,j,k}),&\text{if}\leavevmode\nobreak\ p^{r}_{i,j,k}\geq 0.5\\ 200\cdot p^{r}_{i,j,k},&\text{if}\leavevmode\nobreak\ p^{r}_{i,j,k}<0.5\end{cases}

where ui,j,kr[0,100]|R|subscriptsuperscript𝑢𝑟𝑖𝑗𝑘superscript0100𝑅u^{r}_{i,j,k}\in[0,100]^{|R|} and pi,j,kr[0,1]|R|subscriptsuperscript𝑝𝑟𝑖𝑗𝑘superscript01𝑅p^{r}_{i,j,k}\in[0,1]^{|R|} are the uncertainty score map and probability map, respectively. Here, rR𝑟𝑅r\in R, where R𝑅R is the set of tumor entities, i.e. WT, TC, and ET.

4.3.9 Method-9: Team LMB (Ballestar and Vilaplana, 2021)

The method used a V-net (Milletari et al., 2016) architecture. A combination of test-time-dropout and test-time-augmentation was used for uncertainty estimation. In particular, the same input was passed through the network 20 times with random dropout and random data augmentation. The uncertainty map was estimated with the variance for each sub-region independently. Let Yi=y1i,y2i,,yBisuperscript𝑌𝑖superscriptsubscript𝑦1𝑖superscriptsubscript𝑦2𝑖superscriptsubscript𝑦𝐵𝑖Y^{i}={y_{1}^{i},y_{2}^{i},...,y_{B}^{i}} be the vector that represents predicted labels for the ithsuperscript𝑖𝑡i^{th} voxel. The voxel-wise uncertainty map, for each tumor entity (WT,TC,ET), was obtained as the variance:

var=1Bb=1B(ybiymeani)2,var1𝐵superscriptsubscript𝑏1𝐵superscriptsuperscriptsubscript𝑦𝑏𝑖superscriptsubscript𝑦mean𝑖2\text{var}=\frac{1}{B}\sum_{b=1}^{B}(y_{b}^{i}-y_{\text{mean}}^{i})^{2},

where ymeanisuperscriptsubscript𝑦mean𝑖y_{\text{mean}}^{i} represents the mean prediction across b𝑏b samples.

4.3.10 Method-10: Team Matukituki (McHugh et al., 2021)

A multisequence 2D Dense-UNet segmentation model was trained. The final layer of this model is a four-channel soft-max layer representing the labels ’no tumor’, ’edema’, ’necrosis’, and ’ET’. Uncertainty values were obtained from the final layer of the segmentation model for each label as follows: For WT, initial uncertainty values were obtained by adding the voxel-wise soft-max values of ’edema + necrosis + ET’. The initial uncertainty values for TC were the voxel-wise sum of ’necrosis + ET’. The initial uncertainty of the ET was the values of the voxel-wise soft-max channel representing ET. For all labels, the initial uncertainty values were clipped between 0 and 1. They were then modified according to the function: uncertainty = (1 – initial uncertainty) x 100. Finally, uncertainty values of 99 were changed to 100.

4.3.11 Method-11: Team QTIM (Patel et al., 2021)

The method used an ensemble of five networks to estimate voxel-wise segmentation uncertainty. Mirror axis-flipped inputs were passed through all models in the ensemble, resulting in 40 predictions per entity. These predictions were combined by directly averaging the model logits, denoted as lxsubscript𝑙𝑥l_{x}. A voxel with high predictive uncertainty will have |lx|0subscript𝑙𝑥0|l_{x}|\approx 0, whereas a voxel with high predictive certainty will have |lx|5much-greater-thansubscript𝑙𝑥5|l_{x}|\gg 5. To explicitly quantify uncertainty (U) in the range 0 (maximally certain) to 100 (maximally uncertain), the following formula is used:

Ux={200σ(lx)if 0σ(lx)<0.5200(1σ(lx))otherwisesubscript𝑈𝑥cases200𝜎subscript𝑙𝑥if 0𝜎subscript𝑙𝑥0.52001𝜎subscript𝑙𝑥otherwiseU_{x}=\begin{cases}200\cdot\sigma(l_{x})&\text{if }0\leq\sigma(l_{x})<0.5\\ 200\cdot(1-\sigma(l_{x}))&\text{otherwise}\end{cases}

where the σ𝜎\sigma function converts the ensembled logits to probabilities.

4.3.12 Method-12: Team Nico@LRDE

A cascade of two 3D U-Net type networks was employed for the task of brain tumor segmentation and its associated uncertainty estimation. The first network was trained for the brain tumor segmentation task. The second network was trained to predict where the segmentation network made wrong predictions. Here, the ground truth for training this network was generated as follows: the ground truth was considered ones (present) at voxels where the segmentation network was wrong, and it was considered as zeros (absent) at voxels where the segmentation network was correct. This way, the uncertainty networks learn to return zeros where the segmentation network is generally accurate and values next to one where the segmentation networks will have issues correctly predicting the segmentation ground truth. The output of the uncertainty estimation network (second network) was normalized between 0-100.

5 Analysis

This section presents the complete analyses and evaluation of teams that participated in the QU-BraTS 2020 challenge. Section 5.1 provides the description of the evaluation and ranking strategy followed during the QU-BraTS 2020 challenge. Section 5.2.1 provides the overall ranking results (accounting for all tumor entities) according to which the winning teams were announced at the challenge (Figure 3). We also compare their ranking on the segmentation task in the same section. Then, Section 5.2.2 provides the ranked order of the participating teams according to the individual tumor entities (Figure 4-6), followed by our ablation study (in Section 5.2.3) on the scores incorporated in the general score (Equation 1) (Figure 7-9). Table 2 encapsulates a summary of the ranked order of the participating teams for all this analysis. Finally, Section 5.3 provides qualitative results highlighting the effect of uncertainty thresholding filtering for all participating teams. .

Table 2: Summary of team ranking for different analyses performed in this paper. We use the ranking scheme described in Section:5.1 to rank different teams. “QU-BraTS Ranking” column depicts the actual team ranking for all participating teams in QU-BraTS 2020 challenge (Section 5.2.1). In the ”Segmentation Ranking” column, we also report segmentation ranking for all teams that participated in the QU-BraTS challenge. The segmentation ranking is across 78 teams that participated in the segmentation task during BraTS 2020. In three columns under ”Ranking based on Individual Tumor Entities” (Section 5.2.2), we provide a team ranking based only on one of the three tumor entities. Similarly, we also report the team ranking based on the ablation study of our developed score in the last three columns of ”Ranking Based on Ablation Study” (Section 5.2.3). For each type of ranking, the total number of provided ranks (given in the bracket) varies, as we provide the same rank for teams that do not have a significant statistical difference between their performance (Section 5.1).
TeamsChallenge Ranking(Section 5.2.1)Variations
Ranking Based on
Individual Tumor Entities
(Section 5.2.2)
Ranking Based on
Ablation Study
(Section 5.2.3)
QU-BraTS
Ranking (9)
Segmentation
Ranking (18)
Whole
Tumor (13)
Tumor
Core (11)
Enhancing
Tumor (11)
DSC AUC (10)
DSC AUC and
FTP AUC (9)
DSC AUC and
FTN AUC (12)
SCAN14111624
UmU27322433
DSI_Med213223937
QTIM37423342
Uniandes415534856
nsu_btr51310810149
LMB5208431078
radiomics_miu613755283
Nico@LRDE618666795
Jaguars613566283
Team_Alpaca710977211
Matukituki81911997412
Frankenstein918131186611
med_vision9141210115710

5.1 Ranking Scheme: BraTS 2020 challenge on uncertainty quantification (QU-BraTS)

The ranking scheme used during the challenge comprised the ranking of each team relative to its competitors for each testing subject, for each evaluated tumor entity (i.e., ET, TC, WT) using the overall score (Equation 1). This ranking scheme led to each team being ranked for 166 subjects for three regions, resulting in 498 individual rankings. For each team, first, the individual ranking for each patient was calculated by adding ranks across each region. This ranking is referred to as the Cumulative Ranking Score (CRS). For each team, the Normalized Ranking Score (NRS) was also calculated for each patient by dividing their CRS by the total number of participating teams and the total number of regions. The NRS is in the range of 0-1 for each patient. The final ranking score (FRS) was calculated by averaging the cumulative rank across all patients for each participating team. Other challenges, such as the Ischemic Stroke Lesion Segmentation Challenge (ISLES - http://www.isles-challenge.org/) (Maier et al., 2017), use a similar ranking scheme.

Following the BraTS challenge, further permutation testing was done to determine the statistical significance of the relative rankings between each pair of teams. This permutation testing would reflect differences in performance that exceeded those that might be expected by chance. Specifically, for each team, given a list of observed patient-level Cumulative Ranks, i.e., the actual ranking described above, for each pair of teams, repeated random permutations (i.e., 100,000 times) of the Cumulative Ranks for each subject were performed. The difference in the FRS between this pair of teams was calculated for each permutation. The proportion of times the difference in FRS calculated using randomly permuted data exceeded the observed difference in FRS (i.e., using the actual data) indicated the statistical significance of their relative rankings as a p-value. Teams that do not have a statistically significant difference in their FRS have similar respective ranks (group) on the leaderboard444Throughout the paper, we report any p-value less than 0.05 as the threshold for statistically significant differences..

5.2 Team Ranking

This section reports the final rankings of all participating teams on BraTS 2020 test dataset.

5.2.1 Overall Ranking Results

Refer to caption
Figure 3: QU-BraTS 2020 boxplots of Normalized Ranking Score (NRS) across patients for all participants on the BraTS 2020 test set (lower is better). Boxplots for the top four performing teams are visualized using Pink (Team SCAN), orange (Team DSI_Med), Cyan (Team UmU), and Maroon (Team QTIM) colour. Box plots for the remaining teams use gray colour. Y-axis shows the name of each team and their respective uncertainty task ranking, followed by their segmentation task ranking. There was no statistically significant difference between per patient ranking of teams ranked at the same position. Teams which has different ranks had statistically significant differences in their per-patient ranking.

Figure 3 (and QU-BraTS ranking column in Table 2) provides a relative ranking for each team555Box plot depicting performance of each team for four different scores - DICE_AUC, FTP_RATIO_AUC, FTN_RATIO_AUC, SCORE, for three different tumor entities - WT, TC, ET, is given in Appendix A.. We can see that Team SCAN comfortably outperforms all other methods and achieves the first rank in the challenge. Their Normalized Ranking Score (NRS) across all patients was 0.14similar-toabsent0.14\sim 0.14, while the NRS (across all patients) for the teams which achieved rank 2 (Team UmU and Team DSI_Med) was 0.28similar-toabsent0.28\sim 0.28. There was no statistically significant difference between Team UmU and Team DSI_Med. Thus both teams were ranked at position 2 on the challenge leaderboard. Team QTIM ranked 3rd in the challenge leaderboard and achieved marginally (though statistically significant) lower performance compared to Rank-2 teams (average NRS of 0.31similar-toabsent0.31\sim 0.31 compared to average NRS of 0.28similar-toabsent0.28\sim 0.28).

We also report the relative segmentation ranking of each team participating in the uncertainty challenge. The reported segmentation task ranking is across 78 teams that participated in the segmentation task. From Figure Figure 3 (and Segmentation Ranking column in Table 2), we can observe that while the Team SCAN (pink colour) achieves a higher ranking (Rank-4) than other teams in the segmentation task, the segmentation task ranking and the uncertainty task (QU-BraTS challenge) ranking are not the same. This is visible for Team UmU and Team QTIM, as both achieved a similar ranking (rank-7) in the segmentation task of BraTS 2020; while Team UmU was ranked second in the uncertainty task, Team QTIM was ranked third. Similarly, we can observe that three teams that achieved Rank-13 in the segmentation task (Team DSI_Med, Team nsu_btr, and radiomics-miu) were ranked differently in the uncertainty evaluation task (Rank-2, Rank-5, and Rank-6, respectively). The difference in ranking across both tasks shows that performing well on the segmentation task does not guarantee good performance on the uncertainty evaluation task, and both tasks are complementary.

Refer to caption
Figure 4: QU-BraTS 2020 boxplots of Normalized Ranking Score (NRS) across patients for all participants on the BraTS 2020 test set test set only for Whole Tumor (lower is better). Boxplots for the top four performing teams (in the final ranking - Figure 3) are visualized using Pink (Team SCAN), orange (Team DSI_Med), Cyan (Team UmU), and Maroon (Team QTIM) colour. Box plots for the remaining teams use gray colour. Y-axis shows the name of each team and their respective uncertainty task ranking, followed by their segmentation task ranking. There was no statistically significant difference between per patient ranking of teams ranked at the same position. Teams which has different ranks had statistically significant differences in their per-patient ranking.
Refer to caption
Figure 5: QU-BraTS 2020 boxplots of Normalized Ranking Score (NRS) across patients for all participants on the BraTS 2020 test set test set only for Tumor Core (lower is better). Boxplots for the top four performing teams (in the final ranking - Figure 3) are visualized using Pink (Team SCAN), orange (Team DSI_Med), Cyan (Team UmU), and Maroon (Team QTIM) colour. Box plots for the remaining teams use gray colour. Y-axis shows the name of each team and their respective uncertainty task ranking, followed by their segmentation task ranking. There was no statistically significant difference between per patient ranking of teams ranked at the same position. Teams which has different ranks had statistically significant differences in their per-patient ranking.
Refer to caption

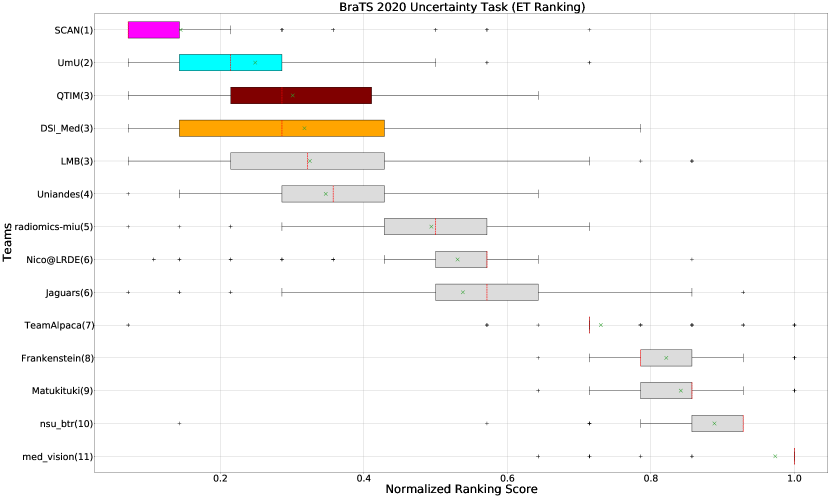

Figure 6: QU-BraTS 2020 boxplots of Normalized Ranking Score (NRS) across patients for all participants on the BraTS 2020 test set test set only for Enhancing Tumor (lower is better). Boxplots for the top four performing teams (in the final ranking - Figure 3) are visualized using Pink (Team SCAN), orange (Team DSI_Med), Cyan (Team UmU), and Maroon (Team QTIM) colour. Box plots for the remaining teams use gray colour. Y-axis shows the name of each team and their respective uncertainty task ranking, followed by their segmentation task ranking. There was no statistically significant difference between per patient ranking of teams ranked at the same position. Teams which has different ranks had statistically significant differences in their per-patient ranking.

5.2.2 Team Ranking for individual tumor entities

The BraTS challenge involves three separate tumor entities (WT, TC, and ET). The segmentation performance across these entities varies, as reported in the previous BraTS challenge reports (Menze et al., 2015; Bakas et al., 2018). Specifically, the BraTS challenge reports good DSC𝐷𝑆𝐶DSC across different teams for the WT segmentation task, while the performance for the ET segmentation task is relatively lower. The performance gap between different tumor entities can hinder the clinical adaptation of the segmentation algorithms. The main goal for developing the uncertainty evaluation scores is to make algorithms more useful for clinical adaptation. Keeping this in mind, we further report the raking of each participating team according to the score (Equation 1) calculated for each tumor entity in Figure 4, Figure 5, and Figure 6.

When teams are ranked only based on their WT scores (Figure 4 and Whole Tumor column in Table 2), Team SCAN still comfortably outperforms other teams similar to the original ranking (Figure 3). Unlike the original ranking scheme, Team DSI_Med ranks statistically significantly higher compared to Team UmU. Similarly, from Figure 5 (and the Tumor Core column in Table 2), we can observe that Team QTIM, Team UmU, and Team DSI_Med perform similarly without any statistically significant difference when ranked only based on their TC score as all teams are ranked at the same position. In Figure 6 (and the Enhancing Tumor column in Table 2), Team UmU achieves rank-2 with statistical significance compared to Team QTIM and Team DSI_Med. We also observe no statistically significant difference between Team QTIM, Team DSI_Med, and Team LMB.

Overall, Team SCAN comfortably ranks first for all tumor entities. Team UmU ranks 3-2-2 for WT-TC-ET, while Team DSI_Med ranks 2-2-3 for WT-TC-ET. Both teams are ranked at position 2 when considering all tumor entities. The analysis shows that different teams achieve different ranks depending on the tumor entities, which shows that their performance differs across different tumor entities.

5.2.3 Ablation study on our score

The overall score for uncertainty evaluation is calculated as a combination of three different AUCs as described in Equation 1. Section 3 described the rationale behind the development of this score. As discussed in Section 3, evaluating the task-dependent metric (in our case, DSC𝐷𝑆𝐶DSC) as a function of filtered samples is critical, especially in the case of pathology segmentation, where there is a high class imbalance. We expect that, by filtering voxels with decrease in the uncertainty threshold, the performance on the remaining voxels measured using the task-dependent metric (DSC𝐷𝑆𝐶DSC) should increase but not at the expense of filtering true positive or true negative voxels. The final score consists of the task-dependent metric and filtered true positive/negatives as a function of uncertainty thresholds. In this section, we perform an ablation study of different components of the final score (DSC𝐷𝑆𝐶DSC, FTP, FTN). Our analysis reaffirms that only considering one or two components of the final score leads to a different ranking among participating teams.

Refer to caption
Figure 7: QU-BraTS 2020 boxplots of Normalized Ranking Score (NRS) across patients for all participants on the BraTS 2020 test set test set based only on DICE_AUC score (lower is better). Boxplots for the top four performing teams (in the final ranking - Figure 3) are visualized using Pink (Team SCAN), orange (Team DSI_Med), Cyan (Team UmU), and Maroon (Team QTIM) colour. Box plots for the remaining teams use gray colour. Y-axis shows the name of each team and their respective uncertainty task ranking, followed by their segmentation task ranking. There was no statistically significant difference between per patient ranking of teams ranked at the same position. Teams which has different ranks had statistically significant differences in their per-patient ranking.
Refer to caption
Figure 8: QU-BraTS 2020 boxplots of Normalized Ranking Score (NRS) across patients for all participants on the BraTS 2020 test set test set based on a combination of DICE_AUC score and FTP_AUC score (lower is better). Boxplots for the top four performing teams (in the final ranking - Figure 3) are visualized using Pink (Team SCAN), orange (Team DSI_Med), Cyan (Team UmU), and Maroon (Team QTIM) colour. Box plots for the remaining teams use gray colour. Y-axis shows the name of each team and their respective uncertainty task ranking, followed by their segmentation task ranking. There was no statistically significant difference between per patient ranking of teams ranked at the same position. Teams which has different ranks had statistically significant differences in their per-patient ranking.
Refer to caption
Figure 9: QU-BraTS 2020 boxplots of Normalized Ranking Score (NRS) across patients for all participants on the BraTS 2020 test set test set based on a combination of DICE_AUC score and FTN_AUC score (lower is better). Boxplots for the top four performing teams (in the final ranking - Figure 3) are visualized using Pink (Team SCAN), orange (Team DSI_Med), Cyan (Team UmU), and Maroon (Team QTIM) colour. Box plots for the remaining teams use gray colour. Y-axis shows the name of each team and their respective uncertainty task ranking, followed by their segmentation task ranking. There was no statistically significant difference between per patient ranking of teams ranked at the same position. Teams which has different ranks had statistically significant differences in their per-patient ranking.

Ranking According to DSC𝐷𝑆𝐶DSC AUC: The main component of any uncertainty evaluation score is the task dependent metric, in our case, DSC𝐷𝑆𝐶DSC. Many previously proposed methods for various tasks only report the value of task dependent metrics at various uncertainty filtering thresholds – For example, the AUC score for multiple sclerosis Nair et al. (2020). In Figure 7 (and the DSC𝐷𝑆𝐶DSC AUC column in Table 2), we rank participating teams according to their performance based on the AUC of DSC𝐷𝑆𝐶DSC vs. Uncertainty threshold. The figure shows that higher ranking teams in this ranking scheme (Team nsu_btr, Team Alpaca, and Team Jaguars) are different from those (Team SCAN, Team UmU, and Team DSI_Med) in the original ranking scheme (Figure 3). A closer look at the higher ranking teams according to AUC of DSC𝐷𝑆𝐶DSC (Figure 7) reveals that teams like Team Alpaca (Section 4.3.2) achieve a good score by using 100(100softmax_confidence)100100softmax_confidence100-(100\cdot\text{softmax}\_\text{confidence}) as a proxy for uncertainty. Using softmax confidence in the foreground class (e.g. tumour subclass) as a direct proxy to uncertainty leads to all voxels belonging to the background class (i.e. healthy tissues) being marked as uncertain at a low uncertainty threshold. This would increase the burden in a system where we are asking clinicians to review all uncertain voxels (Figure 14). We observed that Team Alpaca used softmax confidence in the foreground class as a direct proxy to uncertainty.

Ranking according to a combination of DSC𝐷𝑆𝐶DSC AUC and FTP or FTN AUC: In the last section, we ranked teams according to their performance on the task-dependent evaluation metrics (DSC𝐷𝑆𝐶DSC) at different uncertainty thresholds. As mentioned in Section 3, ranking teams only based on their task-dependent evaluation metric rewards methods which filter out many positive predictions at low uncertainty thresholds to attain higher performance on the metric of interest. This would increase the burden in scenarios where clinical review is needed for all uncertain predictions. To alleviate the issue, teams are ranked according to a combination of (i) AUC score for DSC𝐷𝑆𝐶DSC and (ii) AUC for FTP or AUC for FTN. From Figure 8 (and DSC𝐷𝑆𝐶DSC AUC and FTP AUC column in Table 2), we can conclude that a combination of both DICE_AUC and FTP_AUC alone is insufficient. It still leads to Team Alpaca ranked higher. As shown in Figure 14, Team Alpaca marks all healthy-tissues (True Negative) voxels as uncertain, which reflects that the segmentation method is not confident in its prediction of healthy tissue. This is problematic as it would increase the burden in scenarios where we expect clinicians to review all uncertain predictions. We see a similar problem when teams are ranked only using a combination of DICE_AUC and FTN_AUC (Figure 9 and DSC𝐷𝑆𝐶DSC AUC and FTN AUC column in Table 2).

Analysis in the previous two sections highlights the necessity of combining all three AUCs to calculate the final score for ranking teams in the context of uncertainty quantification of the brain tumor segmentation task.

Refer to caption
Figure 10: Effect of uncertainty thresholding on a BraTS 2020 test case for whole tumor segmentation across different participating teams. (a) T2-FLAIR MRI (b) Ground Truth (c) Prediction (d) No filtering. Uncertainty Threshold = 100 (e) Uncertainty Threshold = 75 (f) Uncertainty Threshold = 50 (g) Uncertainty Threshold = 25.
Refer to caption
Figure 11: Effect of uncertainty thresholding on a BraTS 2020 test case for whole tumor segmentation across different participating teams. (a) T2-FLAIR MRI (b) Ground Truth (c) Prediction (d) No filtering. Uncertainty Threshold = 100 (e) Uncertainty Threshold = 75 (f) Uncertainty Threshold = 50 (g) Uncertainty Threshold = 25.
Refer to caption
Figure 12: Effect of uncertainty thresholding on a BraTS 2020 test case for core tumor segmentation across different participating teams. (a) T1ce MRI (b) Ground Truth (c) Prediction (d) No filtering. Uncertainty Threshold = 100 (e) Uncertainty Threshold = 75 (f) Uncertainty Threshold = 50 (g) Uncertainty Threshold = 25.
Refer to caption
Figure 13: Effect of uncertainty thresholding on a BraTS 2020 test case for core tumor segmentation across different participating teams. (a) T1ce MRI (b) Ground Truth (c) Prediction (d) No filtering. Uncertainty Threshold = 100 (e) Uncertainty Threshold = 75 (f) Uncertainty Threshold = 50 (g) Uncertainty Threshold = 25.
Refer to caption
Figure 14: Effect of uncertainty thresholding on a BraTS 2020 test case for enhance tumor segmentation across different participating teams. (a) T1ce MRI (b) Ground Truth (c) Prediction (d) No filtering. Uncertainty Threshold = 100 (e) Uncertainty Threshold = 75 (f) Uncertainty Threshold = 50 (g) Uncertainty Threshold = 25.

5.3 Qualitative Analysis

Figure 10 - Figure 14 plots the effect of uncertainty threshold based filtering on example slices from a few BraTS 2020 test cases for all participating teams. Green voxels represent True Positive predictions, while blue and red voxels represent False Positive and False Negative predictions. We filter out voxels at different thresholds (100, 75, 50, and 25). Filtered voxels are marked as yellow. According to the developed uncertainty evaluation score (Section 3), we want methods that filter out (marked as yellow) false positive and false negative voxels while retaining true positive and true negative voxels as we decrease the uncertainty threshold.

In Figure 10, we visualize the effect of uncertainty based thresholding for WT segmentation on a single slice of a BraTS 2020 test case. A closer look at some of the better performing teams like Team SCAN, Team UmU, and Team DSI_Med reveals that these teams filter out more False Positives and False Negatives at a higher threshold than other teams like Team QTIM and Team Uniandes. We can also observe that lower-performing teams like Team Alpaca, Team Matukituki, Team Frankenstein, and Team med_vision mark all background voxels as uncertain at a low threshold. As mentioned before, marking background voxels as uncertain is problematic as it shows that the method is not confident in its healthy-tissue segmentation and requires clinicians to review the segmentation.

In Figure 11, we plot the effect of uncertainty based thresholding for WT segmentation on another slice of the same BraTS 2020 test case. Here we observe a similar trend where higher ranked teams can filter out False Positives and False Negatives at a higher threshold than other teams. Team SCAN only filters negative predictions. This results in them never filtering out their False Positive predictions of the whole tumor inside the ventricles. It is problematic in a real-world scenario as we do not want a method that is over-confident about its positive pathology segmentation predictions.

Figure 12 shows an example slice of a different BraTS 2020 patient and visualize the effect of uncertainty thresholding for core tumor segmentation. The figure highlights that team ranking is different across different cases as we can see that Team SCAN and Team UmU has similar prediction at Threshold:100. However, Team SCAN starts filtering out more true negatives sooner compared to Team UmU, which would result in Team SCAN ranked lower compared to Team UmU for this particular BraTS test case. We can observe a similar trend when comparing Team DSI_Med and Team LMB, where Team LMB starts filtering out more false positives sooner than Team DSI_Med. Similarly, in Figure 13, we can observe that in scenarios where all teams are making errors by predicting a high amount of false positives, the overall uncertainty score would be more reliant on which teams can filter out these false positives sooner. For example, Team UmU performs better compared to Team DSI_Med.

Figure 14 depicts an example slice of uncertainty threshold based filtering for ET segmentation. Here we can see that when all teams make almost the same predictions with a high amount of true positives compared to false positives/false negatives, the overall uncertainty score is similar across teams. Except for teams that mark all background (healthy-tissue) voxels as uncertain, they perform poorly on the final score.

6 Discussion

This paper introduced a new score for evaluating uncertainties in the task of brain tumor segmentation during the BraTS 2020 challenge. The proposed score was used to rank different participating teams from the Uncertainty Quantification task of the BraTS 2020 challenge (QU-BraTS 2020).

The proposed evaluation score was developed with the clinical objective of enabling the clinician to review only the uncertain areas of an automatic segmentation algorithm instead of the complete segmentation. Toward this end, this score would reward algorithms that are confident when correct and uncertain when incorrect. The objective was evaluated by filtering (marking as uncertain) voxels with uncertainty higher than a specified threshold as uncertain. The task-dependent DSC𝐷𝑆𝐶DSC is measured only on the remaining unfiltered voxels. To ensure that method does not filter out a high number of correctly predicted voxels in order to achieve a better DSC𝐷𝑆𝐶DSC, the developed evaluation score also keeps track of the number of filtered True Positive and True Negative voxels. Keeping track of these filtered TP and TN voxels ensures that the burden on the reviewing clinicians is not increased substantially. In short, the proposed score calculates the task-dependent metric score (i.e. DSC𝐷𝑆𝐶DSC for segmentation), the percentage of filtered true positives and true negatives at different uncertainty thresholds. It combines them to generate a single evaluation score for a single subject.

The analysis (Section 5.2) of algorithms developed by the participating teams from the QU-BraTS 2020 task highlighted that the relative ranking of the participating teams for both the segmentation and uncertainty quantification tasks are different. The different ranking orders show that performing better on the segmentation task does not guarantee good performance on the uncertainty quantification task. An automatic segmentation method that provides both the segmentation and its uncertainties is more clinically relevant. Both the segmentation and the associated uncertainties provide complementary information. For example, automatic segmentation can provide accurate results with minimal clinician input. In contrast, the associated uncertainty would allow clinicians to see where to trust and review the segmentation before deploying it in clinical practice.

Results in Section 5.2.2 indicate that it is necessary to rank teams individually for each tumor entity as they rank differently across these entities. An ablation study on the proposed score (Section 5.2.3) showed the necessity of utilizing all three components (DSC𝐷𝑆𝐶DSC, percentage of Filtered True Positive, and percentage of Filtered True Negative) for the proposed uncertainty evaluation score.

One of the significant limitations of the current analysis is the dependency between the segmentation results and the uncertainty generation methods, which does not allow for more in-depth analysis. It would be interesting to analyze and compare different uncertainty generation methods (e.g., Team SCAN, Team UmU, Team Alpaca) when the segmentation method is the same across them.

We also observe a limitation of the proposed evaluation score. Team SCAN performs better on the overall score by not marking any positive prediction as uncertain. In a real-world scenario, a method that is always confident about its positive predictions leads to confident over-segmentation. This shows that the developed uncertainty evaluation score is not perfect, and we need to keep improving it. We observed a similar trend in a recently conducted Probabilistic Object Detection challenge (Skinner et al., 2019), where the winning team attained the best score despite not using a probabilistic method. These two examples show the need to keep improving the developed task-depended uncertainty evaluation score for different tasks.

The DSC𝐷𝑆𝐶DSC is a good segmentation metric when the interest structure contains a high number of voxels. However, it is not a stable metric when calculated on a low number of voxels (Reinke et al., 2021). In the developed evaluation score, instability of the DSC𝐷𝑆𝐶DSC leads to low performance at a lower threshold (more filtered voxels), as DSC𝐷𝑆𝐶DSC calculation considers only a few remaining unfiltered voxels (Figure 2). The poor stability of DSC𝐷𝑆𝐶DSC is a well-known challenge in the literature (Reinke et al., 2021). Future work could explore a task-dependent metric that is more stable across different uncertainty thresholds (i.e., different volumes for the structure of interest). For example, we can calculate Precision (TPTP+FP𝑇𝑃𝑇𝑃𝐹𝑃\frac{TP}{TP+FP}) and Recall (TPTP+FN𝑇𝑃𝑇𝑃𝐹𝑁\frac{TP}{TP+FN}) at different uncertainty thresholds and calculate the AUC of these curves (Precision vs Uncertainty threshold, and Recall vs Uncertainty threshold). A high-performing team should get a high AUC for both Precision and Recall (same as AUC for DSC𝐷𝑆𝐶DSC). To achieve a high AUC for Precision, participating teams have to reduce FP (mark them as uncertain). Similarly, to attain a high AUC for Recall, participating teams have to reduce FN (mark them as uncertain). In this way, we can penalize teams that are highly confident in their positive predictions as well as those that are highly confident in their false negative predictions.

The proposed evaluation framework evaluates uncertainties for each tumor entity as a single class segmentation/uncertainty problem, while the overall tumor segmentation is a multi-class problem. Future extensions could involve developing methods to evaluate uncertainties in multi-class segmentation. Multi-class segmentation uncertainties and single-class segmentation uncertainties are different and can lead to different outcomes (Camarasa et al., 2021). In addition, the current evaluation framework focuses on filtering individual voxels, as most of the developed uncertainty frameworks generate per-voxel uncertainties that are not spatially correlated (Gal and Ghahramani, 2016; Lakshminarayanan et al., 2017). The recent development of spatially correlated uncertainty generation methods (Monteiro et al., 2020) indicates the necessity of developing uncertainty evaluation scores that consider the spatial correlation between pixels/voxels.

Another future direction is obtaining ”ground-truth” uncertainty maps and evaluating automatic uncertainty generation methods against these maps. One recent promising direction uses inter-observer and intra-rater variation to proxy for ”ground-truth” uncertainty (Kohl et al., 2018; Baumgartner et al., 2019; Menze et al., 2020; del Toro et al., 2014). One limitation of this approach is that it assumes that ”ground-truth” uncertainties can be estimated through multiple labels provided by different raters for the same (often small) set of images. In recent papers (Zech et al., 2018; Sheller et al., 2020), it was noted that institutional biases (McCarthy et al., 2016) play an essential factor in deep learning medical imaging model performance. However, variability in labeling across raters reflecting institutional biases are not direct proxies for ”ground-truth” uncertainties. To expand on this point, inter-rater and intra-rater variability relies on the assumption of attaining a unique label. However, there are many situations where a unique label cannot necessarily be attained in some regions of an image. For example, at boundaries between tumor and healthy tissue in MRI due partly to partial volume effects but also because the labels cannot be seen in the MRI (and cannot be verified without a biopsy in the case of a tumour). For the latter case, each annotator is ”guessing” the location of the boundary when none are confident in their annotations. The result might be measuring contextual rater biases (e.g., based on their radiology backgrounds) but not reflecting the true uncertainties in the labels themselves (e.g., whether a particular pixel is an enhancing tumour). One alternative approach could be asking annotators to mark areas they are not certain about, such as tumor boundaries in an MRI scan. These ”uncertain” areas can then serve as ”ground-truth,” and uncertainty estimates generated by algorithms can be compared to it. That being said, acquiring a ”ground-truth” uncertainty is still an open area of research.

The approach developed for QU-BraTS has shown promising results in different applications. For example, the proposed score was used to evaluate uncertainties for brain tumor segmentation when a crucial MR sequence is missing (Vadacchino et al., 2021). The proposed score has also been used to evaluate multi-class segmentation of the carotid artery lumen and the vessel wall (Camarasa et al., 2021).


Acknowledgments

Research reported in this publication was partly supported by the Informatics Technology for Cancer Research (ITCR) program of the National Cancer Institute (NCI) of the National Institutes of Health (NIH), under award numbers NIH/NCI/ITCR:U01CA242871 and NIH/NCI/ITCR:U24CA189523. It was also partly supported by the National Institute of Neurological Disorders and Stroke (NINDS) of the NIH, under award number NIH/NINDS:R01NS042645, The content of this publication is solely the responsibility of the authors and does not represent the official views of the NIH.

This work was supported by a Canadian Natural Science and Engineering Research Council (NSERC) Collaborative Research and Development Grant (CRDPJ 505357 - 16), Synaptive Medical, and the Canada Institute for Advanced Research (CIFAR) Artificial Intelligence Chairs program.


Ethical Standards

The work follows appropriate ethical standards in conducting research and writing the manuscript, following all applicable laws and regulations regarding treatment of animals or human subjects.


Conflicts of Interest

The conflicts of interest have not been entered yet.

References

  • Abdar et al. (2021) Moloud Abdar, Farhad Pourpanah, Sadiq Hussain, Dana Rezazadegan, Li Liu, Mohammad Ghavamzadeh, Paul Fieguth, Xiaochun Cao, Abbas Khosravi, U Rajendra Acharya, et al. A review of uncertainty quantification in deep learning: Techniques, applications and challenges. Information Fusion, 2021.
  • Amian and Soltaninejad (2019) Mehdi Amian and Mohammadreza Soltaninejad. Multi-resolution 3d CNN for MRI brain tumor segmentation and survival prediction. In Alessandro Crimi and Spyridon Bakas, editors, Brainlesion: Glioma, Multiple Sclerosis, Stroke and Traumatic Brain Injuries - 5th International Workshop, BrainLes 2019, Held in Conjunction with MICCAI 2019, Shenzhen, China, October 17, 2019, Revised Selected Papers, Part I, volume 11992 of Lecture Notes in Computer Science, pages 221–230. Springer, 2019. doi: 10.1007/978-3-030-46640-4“˙21. URL https://doi.org/10.1007/978-3-030-46640-4_21.
  • Antonelli et al. (2021) Michela Antonelli, Annika Reinke, Spyridon Bakas, Keyvan Farahani, Bennett A Landman, Geert Litjens, Bjoern Menze, Olaf Ronneberger, Ronald M Summers, Bram van Ginneken, et al. The medical segmentation decathlon. arXiv preprint arXiv:2106.05735, 2021.
  • Araújo et al. (2020) Teresa Araújo, Guilherme Aresta, Luís Mendonça, Susana Penas, Carolina Maia, Ângela Carneiro, Ana Maria Mendonça, and Aurélio Campilho. Dr— graduate: Uncertainty-aware deep learning-based diabetic retinopathy grading in eye fundus images. Medical Image Analysis, 63:101715, 2020.
  • Ashukha et al. (2020) Arsenii Ashukha, Alexander Lyzhov, Dmitry Molchanov, and Dmitry Vetrov. Pitfalls of in-domain uncertainty estimation and ensembling in deep learning. arXiv preprint arXiv:2002.06470, 2020.
  • Baid et al. (2019) Ujjwal Baid, Nisarg A. Shah, and Sanjay N. Talbar. Brain tumor segmentation with cascaded deep convolutional neural network. In Alessandro Crimi and Spyridon Bakas, editors, Brainlesion: Glioma, Multiple Sclerosis, Stroke and Traumatic Brain Injuries - 5th International Workshop, BrainLes 2019, Held in Conjunction with MICCAI 2019, Shenzhen, China, October 17, 2019, Revised Selected Papers, Part II, volume 11993 of Lecture Notes in Computer Science, pages 90–98. Springer, 2019. doi: 10.1007/978-3-030-46643-5“˙9. URL https://doi.org/10.1007/978-3-030-46643-5_9.
  • Baid et al. (2021) Ujjwal Baid, Satyam Ghodasara, Michel Bilello, Suyash Mohan, Evan Calabrese, Errol Colak, Keyvan Farahani, Jayashree Kalpathy-Cramer, Felipe C Kitamura, Sarthak Pati, et al. The rsna-asnr-miccai brats 2021 benchmark on brain tumor segmentation and radiogenomic classification. arXiv preprint arXiv:2107.02314, 2021.
  • Bakas et al. (2017a) Spyridon Bakas, Hamed Akbari, Aristeidis Sotiras, Michel Bilello, Martin Rozycki, Justin Kirby, John Freymann, Keyvan Farahani, and Christos Davatzikos. Segmentation labels and radiomic features for the pre-operative scans of the tcga-gbm collection. The cancer imaging archive, 286, 2017a.
  • Bakas et al. (2017b) Spyridon Bakas, Hamed Akbari, Aristeidis Sotiras, Michel Bilello, Martin Rozycki, Justin Kirby, John Freymann, Keyvan Farahani, and Christos Davatzikos. Segmentation labels and radiomic features for the pre-operative scans of the tcga-lgg collection. The cancer imaging archive, 286, 2017b.
  • Bakas et al. (2017c) Spyridon Bakas, Hamed Akbari, Aristeidis Sotiras, Michel Bilello, Martin Rozycki, Justin S Kirby, John B Freymann, Keyvan Farahani, and Christos Davatzikos. Advancing the cancer genome atlas glioma mri collections with expert segmentation labels and radiomic features. Scientific data, 4(1):1–13, 2017c.
  • Bakas et al. (2018) Spyridon Bakas, Mauricio Reyes, Andras Jakab, Stefan Bauer, Markus Rempfler, Alessandro Crimi, Russell Takeshi Shinohara, Christoph Berger, Sung Min Ha, Martin Rozycki, et al. Identifying the best machine learning algorithms for brain tumor segmentation, progression assessment, and overall survival prediction in the brats challenge. arXiv preprint arXiv:1811.02629, 2018.
  • Ballestar and Vilaplana (2021) Laura Mora Ballestar and Veronica Vilaplana. MRI brain tumor segmentation and uncertainty estimation using 3d-UNet architectures. In Brainlesion: Glioma, Multiple Sclerosis, Stroke and Traumatic Brain Injuries, pages 376–390. Springer International Publishing, 2021. doi: 10.1007/978-3-030-72084-1˙34. URL https://doi.org/10.1007/978-3-030-72084-1_34.
  • Banerjee et al. (2019a) Subhashis Banerjee, Harkirat Singh Arora, and Sushmita Mitra. Ensemble of cnns for segmentation of glioma sub-regions with survival prediction. In Alessandro Crimi and Spyridon Bakas, editors, Brainlesion: Glioma, Multiple Sclerosis, Stroke and Traumatic Brain Injuries - 5th International Workshop, BrainLes 2019, Held in Conjunction with MICCAI 2019, Shenzhen, China, October 17, 2019, Revised Selected Papers, Part II, volume 11993 of Lecture Notes in Computer Science, pages 37–49. Springer, 2019a. doi: 10.1007/978-3-030-46643-5“˙4. URL https://doi.org/10.1007/978-3-030-46643-5_4.
  • Banerjee et al. (2019b) Subhashis Banerjee, Sushmita Mitra, and B. Uma Shankar. Multi-planar spatial-ConvNet for segmentation and survival prediction in brain cancer. In Brainlesion: Glioma, Multiple Sclerosis, Stroke and Traumatic Brain Injuries, pages 94–104. Springer International Publishing, 2019b. doi: 10.1007/978-3-030-11726-9˙9. URL https://doi.org/10.1007/978-3-030-11726-9_9.
  • Baumgartner et al. (2019) Christian F. Baumgartner, Kerem C. Tezcan, Krishna Chaitanya, Andreas M. Hötker, Urs J. Muehlematter, Khoschy Schawkat, Anton S. Becker, Olivio Donati, and Ender Konukoglu. PHiSeg: Capturing uncertainty in medical image segmentation. In Lecture Notes in Computer Science, pages 119–127. Springer International Publishing, 2019. doi: 10.1007/978-3-030-32245-8˙14. URL https://doi.org/10.1007/978-3-030-32245-8_14.
  • Bernard et al. (2018) Olivier Bernard, Alain Lalande, Clement Zotti, Frederick Cervenansky, Xin Yang, Pheng-Ann Heng, Irem Cetin, Karim Lekadir, Oscar Camara, Miguel Angel Gonzalez Ballester, et al. Deep learning techniques for automatic mri cardiac multi-structures segmentation and diagnosis: Is the problem solved? IEEE transactions on medical imaging, 37(11):2514–2525, 2018.
  • Bian et al. (2020) Cheng Bian, Chenglang Yuan, Jiexiang Wang, Meng Li, Xin Yang, Shuang Yu, Kai Ma, Jin Yuan, and Yefeng Zheng. Uncertainty-aware domain alignment for anatomical structure segmentation. Medical Image Analysis, 64:101732, 2020.
  • Blei et al. (2017) David M Blei, Alp Kucukelbir, and Jon D McAuliffe. Variational inference: A review for statisticians. Journal of the American statistical Association, 112(518):859–877, 2017.
  • Blundell et al. (2015) Charles Blundell, Julien Cornebise, Koray Kavukcuoglu, and Daan Wierstra. Weight uncertainty in neural network. In International Conference on Machine Learning, pages 1613–1622. PMLR, 2015.
  • Boutry et al. (2019) Nicolas Boutry, Joseph Chazalon, Élodie Puybareau, Guillaume Tochon, Hugues Talbot, and Thierry Géraud. Using separated inputs for multimodal brain tumor segmentation with 3d u-net-like architectures. In Alessandro Crimi and Spyridon Bakas, editors, Brainlesion: Glioma, Multiple Sclerosis, Stroke and Traumatic Brain Injuries - 5th International Workshop, BrainLes 2019, Held in Conjunction with MICCAI 2019, Shenzhen, China, October 17, 2019, Revised Selected Papers, Part I, volume 11992 of Lecture Notes in Computer Science, pages 187–199. Springer, 2019. doi: 10.1007/978-3-030-46640-4“˙18. URL https://doi.org/10.1007/978-3-030-46640-4_18.
  • Camarasa et al. (2021) Robin Camarasa, Daniel Bos, Jeroen Hendrikse, Paul H. J. Nederkoorn, M. Eline Kooi, Aad van der Lugt, and Marleen de Bruijne. A quantitative comparison of epistemic uncertainty maps applied to multi-class segmentation. CoRR, abs/2109.10702, 2021. URL https://arxiv.org/abs/2109.10702.
  • Chen et al. (2019) Chun-Fu (Richard) Chen, Quanfu Fan, Neil Mallinar, Tom Sercu, and Rogério Schmidt Feris. Big-little net: An efficient multi-scale feature representation for visual and speech recognition. In 7th International Conference on Learning Representations, ICLR 2019, New Orleans, LA, USA, May 6-9, 2019. OpenReview.net, 2019. URL https://openreview.net/forum?id=HJMHpjC9Ym.
  • Çiçek et al. (2016) Özgün Çiçek, Ahmed Abdulkadir, Soeren S Lienkamp, Thomas Brox, and Olaf Ronneberger. 3d u-net: learning dense volumetric segmentation from sparse annotation. In International conference on medical image computing and computer-assisted intervention, pages 424–432. Springer, 2016.
  • Clark et al. (2013) Kenneth Clark, Bruce Vendt, Kirk Smith, John Freymann, Justin Kirby, Paul Koppel, Stephen Moore, Stanley Phillips, David Maffitt, Michael Pringle, et al. The cancer imaging archive (tcia): maintaining and operating a public information repository. Journal of digital imaging, 26(6):1045–1057, 2013.
  • Codella et al. (2019) Noel Codella, Veronica Rotemberg, Philipp Tschandl, M Emre Celebi, Stephen Dusza, David Gutman, Brian Helba, Aadi Kalloo, Konstantinos Liopyris, Michael Marchetti, et al. Skin lesion analysis toward melanoma detection 2018: A challenge hosted by the international skin imaging collaboration (isic). arXiv preprint arXiv:1902.03368, 2019.
  • Dai et al. (2021) Chengliang Dai, Shuo Wang, Hadrien Raynaud, Yuanhan Mo, Elsa Angelini, Yike Guo, and Wenjia Bai. Self-training for brain tumour segmentation with uncertainty estimation and biophysics-guided survival prediction. In Brainlesion: Glioma, Multiple Sclerosis, Stroke and Traumatic Brain Injuries, pages 514–523. Springer International Publishing, 2021. doi: 10.1007/978-3-030-72084-1˙46. URL https://doi.org/10.1007/978-3-030-72084-1_46.
  • Dalca et al. (2018) Adrian V Dalca, Guha Balakrishnan, John Guttag, and Mert R Sabuncu. Unsupervised learning for fast probabilistic diffeomorphic registration. In International Conference on Medical Image Computing and Computer-Assisted Intervention, pages 729–738. Springer, 2018.
  • Davatzikos et al. (2018) Christos Davatzikos, Saima Rathore, Spyridon Bakas, Sarthak Pati, Mark Bergman, Ratheesh Kalarot, Patmaa Sridharan, Aimilia Gastounioti, Nariman Jahani, Eric Cohen, et al. Cancer imaging phenomics toolkit: quantitative imaging analytics for precision diagnostics and predictive modeling of clinical outcome. Journal of medical imaging, 5(1):011018, 2018.
  • Daza et al. (2021) Laura Daza, Catalina Gómez, and Pablo Arbeláez. Cerberus: A multi-headed network for brain tumor segmentation. In Brainlesion: Glioma, Multiple Sclerosis, Stroke and Traumatic Brain Injuries, pages 342–351. Springer International Publishing, 2021. doi: 10.1007/978-3-030-72087-2˙30. URL https://doi.org/10.1007/978-3-030-72087-2_30.
  • del Toro et al. (2014) Oscar Alfonso Jiménez del Toro, Orcun Goksel, Bjoern Menze, Henning Müller, Georg Langs, Marc-André Weber, Ivan Eggel, Katharina Gruenberg, Markus Holzer, Georgios Kotsios-Kontokotsios, et al. Visceral–visual concept extraction challenge in radiology: Isbi 2014 challenge organization. Proceedings of the VISCERAL Challenge at ISBI, 1194:6–15, 2014.
  • Der Kiureghian and Ditlevsen (2009) Armen Der Kiureghian and Ove Ditlevsen. Aleatory or epistemic? does it matter? Structural safety, 31(2):105–112, 2009.
  • Doshi et al. (2019) Jimit Doshi, Güray Erus, Mohamad Habes, and Christos Davatzikos. Deepmrseg: A convolutional deep neural network for anatomy and abnormality segmentation on MR images. CoRR, abs/1907.02110, 2019. URL http://arxiv.org/abs/1907.02110.
  • Duncan et al. (2021) Chase Duncan, Francis Roxas, Neel Jani, Jane Maksimovic, Matthew Bramlet, Brad Sutton, and Sanmi Koyejo. Some new tricks for deep glioma segmentation. In Brainlesion: Glioma, Multiple Sclerosis, Stroke and Traumatic Brain Injuries, pages 320–330. Springer International Publishing, 2021. doi: 10.1007/978-3-030-72087-2˙28. URL https://doi.org/10.1007/978-3-030-72087-2_28.
  • Feng et al. (2019) Xue Feng, Quan Dou, Nicholas J. Tustison, and Craig H. Meyer. Brain tumor segmentation with uncertainty estimation and overall survival prediction. In Alessandro Crimi and Spyridon Bakas, editors, Brainlesion: Glioma, Multiple Sclerosis, Stroke and Traumatic Brain Injuries - 5th International Workshop, BrainLes 2019, Held in Conjunction with MICCAI 2019, Shenzhen, China, October 17, 2019, Revised Selected Papers, Part I, volume 11992 of Lecture Notes in Computer Science, pages 304–314. Springer, 2019. doi: 10.1007/978-3-030-46640-4“˙29. URL https://doi.org/10.1007/978-3-030-46640-4_29.
  • Filos et al. (2019) Angelos Filos, Sebastian Farquhar, Aidan N Gomez, Tim GJ Rudner, Zachary Kenton, Lewis Smith, Milad Alizadeh, Arnoud De Kroon, and Yarin Gal. A systematic comparison of bayesian deep learning robustness in diabetic retinopathy tasks. arXiv preprint arXiv:1912.10481, 2019.
  • Gal and Ghahramani (2016) Yarin Gal and Zoubin Ghahramani. Dropout as a bayesian approximation: Representing model uncertainty in deep learning. In international conference on machine learning, pages 1050–1059. PMLR, 2016.
  • Gal et al. (2017) Yarin Gal, Riashat Islam, and Zoubin Ghahramani. Deep bayesian active learning with image data. In Proceedings of the 34th International Conference on Machine Learning-Volume 70, pages 1183–1192. JMLR. org, 2017.
  • Ghesu et al. (2019) Florin C Ghesu, Bogdan Georgescu, Eli Gibson, Sebastian Guendel, Mannudeep K Kalra, Ramandeep Singh, Subba R Digumarthy, Sasa Grbic, and Dorin Comaniciu. Quantifying and leveraging classification uncertainty for chest radiograph assessment. In International Conference on Medical Image Computing and Computer-Assisted Intervention, pages 676–684. Springer, 2019.
  • Groza et al. (2021) Vladimir Groza, Bair Tuchinov, Evgeniya Amelina, Evgeniy Pavlovskiy, Nikolay Tolstokulakov, Mikhail Amelin, Sergey Golushko, and Andrey Letyagin. Brain tumor segmentation and associated uncertainty evaluation using multi-sequences MRI mixture data preprocessing. In Brainlesion: Glioma, Multiple Sclerosis, Stroke and Traumatic Brain Injuries, pages 148–157. Springer International Publishing, 2021. doi: 10.1007/978-3-030-72087-2˙13. URL https://doi.org/10.1007/978-3-030-72087-2_13.
  • Guo et al. (2017) Chuan Guo, Geoff Pleiss, Yu Sun, and Kilian Q Weinberger. On calibration of modern neural networks. In International Conference on Machine Learning, pages 1321–1330. PMLR, 2017.
  • Hall et al. (2020) David Hall, Feras Dayoub, John Skinner, Haoyang Zhang, Dimity Miller, Peter Corke, Gustavo Carneiro, Anelia Angelova, and Niko Sünderhauf. Probabilistic object detection: Definition and evaluation. In Proceedings of the IEEE/CVF Winter Conference on Applications of Computer Vision, pages 1031–1040, 2020.
  • Heimann et al. (2009) Tobias Heimann, Bram Van Ginneken, Martin A Styner, Yulia Arzhaeva, Volker Aurich, Christian Bauer, Andreas Beck, Christoph Becker, Reinhard Beichel, György Bekes, et al. Comparison and evaluation of methods for liver segmentation from ct datasets. IEEE transactions on medical imaging, 28(8):1251–1265, 2009.
  • Heller et al. (2021) Nicholas Heller, Fabian Isensee, Klaus H Maier-Hein, Xiaoshuai Hou, Chunmei Xie, Fengyi Li, Yang Nan, Guangrui Mu, Zhiyong Lin, Miofei Han, et al. The state of the art in kidney and kidney tumor segmentation in contrast-enhanced ct imaging: Results of the kits19 challenge. Medical Image Analysis, 67:101821, 2021.
  • Hu et al. (2020) Jie Hu, Li Shen, Samuel Albanie, Gang Sun, and Enhua Wu. Squeeze-and-excitation networks. IEEE Trans. Pattern Anal. Mach. Intell., 42(8):2011–2023, 2020. doi: 10.1109/TPAMI.2019.2913372. URL https://doi.org/10.1109/TPAMI.2019.2913372.
  • Huang et al. (2017) Gao Huang, Zhuang Liu, Laurens van der Maaten, and Kilian Q. Weinberger. Densely connected convolutional networks. In 2017 IEEE Conference on Computer Vision and Pattern Recognition, CVPR 2017, Honolulu, HI, USA, July 21-26, 2017, pages 2261–2269. IEEE Computer Society, 2017. doi: 10.1109/CVPR.2017.243. URL https://doi.org/10.1109/CVPR.2017.243.
  • Isensee et al. (2018) Fabian Isensee, Philipp Kickingereder, Wolfgang Wick, Martin Bendszus, and Klaus H Maier-Hein. No new-net. In International MICCAI Brainlesion Workshop, pages 234–244. Springer, 2018.
  • Isensee et al. (2021) Fabian Isensee, Paul F Jaeger, Simon AA Kohl, Jens Petersen, and Klaus H Maier-Hein. nnu-net: a self-configuring method for deep learning-based biomedical image segmentation. Nature methods, 18(2):203–211, 2021.
  • Jungo et al. (2020) Alain Jungo, Fabian Balsiger, and Mauricio Reyes. Analyzing the quality and challenges of uncertainty estimations for brain tumor segmentation. Frontiers in neuroscience, 14:282, 2020.
  • Kamnitsas et al. (2016) Konstantinos Kamnitsas, Enzo Ferrante, Sarah Parisot, Christian Ledig, Aditya V Nori, Antonio Criminisi, Daniel Rueckert, and Ben Glocker. Deepmedic for brain tumor segmentation. In International workshop on Brainlesion: Glioma, multiple sclerosis, stroke and traumatic brain injuries, pages 138–149. Springer, 2016.
  • Kamnitsas et al. (2017) Konstantinos Kamnitsas, Christian Ledig, Virginia FJ Newcombe, Joanna P Simpson, Andrew D Kane, David K Menon, Daniel Rueckert, and Ben Glocker. Efficient multi-scale 3d cnn with fully connected crf for accurate brain lesion segmentation. Medical image analysis, 36:61–78, 2017.
  • Karimi et al. (2019) Davood Karimi, Qi Zeng, Prateek Mathur, Apeksha Avinash, Sara Mahdavi, Ingrid Spadinger, Purang Abolmaesumi, and Septimiu E Salcudean. Accurate and robust deep learning-based segmentation of the prostate clinical target volume in ultrasound images. Medical image analysis, 57:186–196, 2019.
  • Kendall and Gal (2017) Alex Kendall and Yarin Gal. What uncertainties do we need in bayesian deep learning for computer vision? NIPS’17, page 5580–5590, 2017. ISBN 9781510860964.
  • Kendall et al. (2015) Alex Kendall, Vijay Badrinarayanan, and Roberto Cipolla. Bayesian segnet: Model uncertainty in deep convolutional encoder-decoder architectures for scene understanding. arXiv preprint arXiv:1511.02680, 2015.
  • Kohl et al. (2018) Simon Kohl, Bernardino Romera-Paredes, Clemens Meyer, Jeffrey De Fauw, Joseph R. Ledsam, Klaus H. Maier-Hein, S. M. Ali Eslami, Danilo Jimenez Rezende, and Olaf Ronneberger. A probabilistic u-net for segmentation of ambiguous images. In Samy Bengio, Hanna M. Wallach, Hugo Larochelle, Kristen Grauman, Nicolò Cesa-Bianchi, and Roman Garnett, editors, Advances in Neural Information Processing Systems 31: Annual Conference on Neural Information Processing Systems 2018, NeurIPS 2018, December 3-8, 2018, Montréal, Canada, pages 6965–6975, 2018. URL https://proceedings.neurips.cc/paper/2018/hash/473447ac58e1cd7e96172575f48dca3b-Abstract.html.
  • Kurc et al. (2020) Tahsin Kurc, Spyridon Bakas, Xuhua Ren, Aditya Bagari, Alexandre Momeni, Yue Huang, Lichi Zhang, Ashish Kumar, Marc Thibault, Qi Qi, et al. Segmentation and classification in digital pathology for glioma research: challenges and deep learning approaches. Frontiers in neuroscience, 14:27, 2020.
  • Lakshminarayanan et al. (2017) Balaji Lakshminarayanan, Alexander Pritzel, and Charles Blundell. Simple and scalable predictive uncertainty estimation using deep ensembles. In I. Guyon, U. V. Luxburg, S. Bengio, H. Wallach, R. Fergus, S. Vishwanathan, and R. Garnett, editors, Advances in Neural Information Processing Systems, volume 30. Curran Associates, Inc., 2017. URL https://proceedings.neurips.cc/paper/2017/file/9ef2ed4b7fd2c810847ffa5fa85bce38-Paper.pdf.
  • Lin et al. (2020) Tsung-Yi Lin, Priya Goyal, Ross Girshick, Kaiming He, and Piotr Dollar. Focal loss for dense object detection. IEEE Transactions on Pattern Analysis and Machine Intelligence, 42(2):318–327, February 2020. doi: 10.1109/tpami.2018.2858826. URL https://doi.org/10.1109/tpami.2018.2858826.
  • Louis et al. (2021) David N Louis, Arie Perry, Pieter Wesseling, Daniel J Brat, Ian A Cree, Dominique Figarella-Branger, Cynthia Hawkins, HK Ng, Stefan M Pfister, Guido Reifenberger, et al. The 2021 who classification of tumors of the central nervous system: a summary. Neuro-oncology, 23(8):1231–1251, 2021.
  • Maier et al. (2017) Oskar Maier, Bjoern H Menze, Janina von der Gablentz, Levin Häni, Mattias P Heinrich, Matthias Liebrand, Stefan Winzeck, Abdul Basit, Paul Bentley, Liang Chen, et al. Isles 2015-a public evaluation benchmark for ischemic stroke lesion segmentation from multispectral mri. Medical image analysis, 35:250–269, 2017.
  • McCarthy et al. (2016) Anne Marie McCarthy, Brad M Keller, Lauren M Pantalone, Meng-Kang Hsieh, Marie Synnestvedt, Emily F Conant, Katrina Armstrong, and Despina Kontos. Racial differences in quantitative measures of area and volumetric breast density. JNCI: Journal of the National Cancer Institute, 108(10), 2016.
  • McHugh et al. (2021) Hugh McHugh, Gonzalo Maso Talou, and Alan Wang. 2d dense-UNet: A clinically valid approach to automated glioma segmentation. In Brainlesion: Glioma, Multiple Sclerosis, Stroke and Traumatic Brain Injuries, pages 69–80. Springer International Publishing, 2021. doi: 10.1007/978-3-030-72087-2˙7. URL https://doi.org/10.1007/978-3-030-72087-2_7.
  • McKinley et al. (2019) Richard McKinley, Michael Rebsamen, Raphael Meier, and Roland Wiest. Triplanar ensemble of 3d-to-2d cnns with label-uncertainty for brain tumor segmentation. In Alessandro Crimi and Spyridon Bakas, editors, Brainlesion: Glioma, Multiple Sclerosis, Stroke and Traumatic Brain Injuries - 5th International Workshop, BrainLes 2019, Held in Conjunction with MICCAI 2019, Shenzhen, China, October 17, 2019, Revised Selected Papers, Part I, volume 11992 of Lecture Notes in Computer Science, pages 379–387. Springer, 2019. doi: 10.1007/978-3-030-46640-4“˙36. URL https://doi.org/10.1007/978-3-030-46640-4_36.
  • McKinley et al. (2021) Richard McKinley, Micheal Rebsamen, Katrin Dätwyler, Raphael Meier, Piotr Radojewski, and Roland Wiest. Uncertainty-driven refinement of tumor-core segmentation using 3d-to-2d networks with label uncertainty. In Brainlesion: Glioma, Multiple Sclerosis, Stroke and Traumatic Brain Injuries, pages 401–411. Springer International Publishing, 2021. doi: 10.1007/978-3-030-72084-1˙36. URL https://doi.org/10.1007/978-3-030-72084-1_36.
  • Mehta and Arbel (2018) Raghav Mehta and Tal Arbel. 3d u-net for brain tumour segmentation. In International MICCAI Brainlesion Workshop, pages 254–266. Springer, 2018.
  • Mehta et al. (2020) Raghav Mehta, Angelos Filos, Yarin Gal, and Tal Arbel. Uncertainty evaluation metric for brain tumour segmentation. arXiv preprint arXiv:2005.14262, 2020.
  • Menze et al. (2020) Bjoern Menze, Leo Joskowicz, Spyridon Bakas, Andras Jakab, Ender Konukoglu, and Anton Becker. Qubiq - grand challenge, 2020. URL https://qubiq.grand-challenge.org/.
  • Menze et al. (2015) Bjoern H. Menze, Andras Jakab, Stefan Bauer, Jayashree Kalpathy-Cramer, Keyvan Farahani, Justin Kirby, Yuliya Burren, Nicole Porz, Johannes Slotboom, Roland Wiest, Levente Lanczi, Elizabeth Gerstner, Marc-Andre Weber, Tal Arbel, Brian B. Avants, Nicholas Ayache, Patricia Buendia, D. Louis Collins, Nicolas Cordier, Jason J. Corso, Antonio Criminisi, Tilak Das, Herve Delingette, Cagatay Demiralp, Christopher R. Durst, Michel Dojat, Senan Doyle, Joana Festa, Florence Forbes, Ezequiel Geremia, Ben Glocker, Polina Golland, Xiaotao Guo, Andac Hamamci, Khan M. Iftekharuddin, Raj Jena, Nigel M. John, Ender Konukoglu, Danial Lashkari, Jose Antonio Mariz, Raphael Meier, Sergio Pereira, Doina Precup, Stephen J. Price, Tammy Riklin Raviv, Syed M. S. Reza, Michael Ryan, Duygu Sarikaya, Lawrence Schwartz, Hoo-Chang Shin, Jamie Shotton, Carlos A. Silva, Nuno Sousa, Nagesh K. Subbanna, Gabor Szekely, Thomas J. Taylor, Owen M. Thomas, Nicholas J. Tustison, Gozde Unal, Flor Vasseur, Max Wintermark, Dong Hye Ye, Liang Zhao, Binsheng Zhao, Darko Zikic, Marcel Prastawa, Mauricio Reyes, and Koen Van Leemput. The multimodal brain tumor image segmentation benchmark (BRATS). IEEE Transactions on Medical Imaging, 34(10):1993–2024, October 2015. doi: 10.1109/tmi.2014.2377694. URL https://doi.org/10.1109/tmi.2014.2377694.
  • Milletari et al. (2016) Fausto Milletari, Nassir Navab, and Seyed-Ahmad Ahmadi. V-net: Fully convolutional neural networks for volumetric medical image segmentation. In 2016 fourth international conference on 3D vision (3DV), pages 565–571. IEEE, 2016.
  • Monteiro et al. (2020) Miguel Monteiro, Loïc Le Folgoc, Daniel Coelho de Castro, Nick Pawlowski, Bernardo Marques, Konstantinos Kamnitsas, Mark van der Wilk, and Ben Glocker. Stochastic segmentation networks: Modelling spatially correlated aleatoric uncertainty. In Hugo Larochelle, Marc’Aurelio Ranzato, Raia Hadsell, Maria-Florina Balcan, and Hsuan-Tien Lin, editors, Advances in Neural Information Processing Systems 33: Annual Conference on Neural Information Processing Systems 2020, NeurIPS 2020, December 6-12, 2020, virtual, 2020. URL https://proceedings.neurips.cc/paper/2020/hash/95f8d9901ca8878e291552f001f67692-Abstract.html.
  • Mukhoti and Gal (2018) Jishnu Mukhoti and Yarin Gal. Evaluating bayesian deep learning methods for semantic segmentation. arXiv preprint arXiv:1811.12709, 2018.
  • Müller and Clough (2005) Henning Müller and Paul Clough. Imageclef 2004–2005: results, experiences and new ideas for image retrieval evaluation. 2005.
  • Murugesan et al. (2019) Gowtham Krishnan Murugesan, Sahil S. Nalawade, Chandan Ganesh Bangalore Yogananda, Benjamin C. Wagner, Fang F. Yu, Baowei Fei, Ananth J. Madhuranthakam, and Joseph A. Maldjian. Multidimensional and multiresolution ensemble networks for brain tumor segmentation. In Alessandro Crimi and Spyridon Bakas, editors, Brainlesion: Glioma, Multiple Sclerosis, Stroke and Traumatic Brain Injuries - 5th International Workshop, BrainLes 2019, Held in Conjunction with MICCAI 2019, Shenzhen, China, October 17, 2019, Revised Selected Papers, Part II, volume 11993 of Lecture Notes in Computer Science, pages 148–157. Springer, 2019. doi: 10.1007/978-3-030-46643-5“˙14. URL https://doi.org/10.1007/978-3-030-46643-5_14.
  • Murugesan et al. (2021) Gowtham Krishnan Murugesan, Sahil Nalawade, Chandan Ganesh, Ben Wagner, Fang F. Yu, Baowei Fei, Ananth J. Madhuranthakam, and Joseph A. Maldjian. Multidimensional and multiresolution ensemble networks for brain tumor segmentation. In Brainlesion: Glioma, Multiple Sclerosis, Stroke and Traumatic Brain Injuries, pages 448–457. Springer International Publishing, 2021. doi: 10.1007/978-3-030-72084-1˙40. URL https://doi.org/10.1007/978-3-030-72084-1_40.
  • Myronenko and Hatamizadeh (2019) Andriy Myronenko and Ali Hatamizadeh. Robust semantic segmentation of brain tumor regions from 3d mris. In Alessandro Crimi and Spyridon Bakas, editors, Brainlesion: Glioma, Multiple Sclerosis, Stroke and Traumatic Brain Injuries - 5th International Workshop, BrainLes 2019, Held in Conjunction with MICCAI 2019, Shenzhen, China, October 17, 2019, Revised Selected Papers, Part II, volume 11993 of Lecture Notes in Computer Science, pages 82–89. Springer, 2019. doi: 10.1007/978-3-030-46643-5“˙8. URL https://doi.org/10.1007/978-3-030-46643-5_8.
  • Nair et al. (2020) Tanya Nair, Doina Precup, Douglas L Arnold, and Tal Arbel. Exploring uncertainty measures in deep networks for multiple sclerosis lesion detection and segmentation. Medical image analysis, 59:101557, 2020.
  • Neal (2012) Radford M Neal. Bayesian learning for neural networks, volume 118. Springer Science & Business Media, 2012.
  • Orlando et al. (2020) José Ignacio Orlando, Huazhu Fu, João Barbosa Breda, Karel van Keer, Deepti R Bathula, Andrés Diaz-Pinto, Ruogu Fang, Pheng-Ann Heng, Jeyoung Kim, JoonHo Lee, et al. Refuge challenge: A unified framework for evaluating automated methods for glaucoma assessment from fundus photographs. Medical image analysis, 59:101570, 2020.
  • Patel et al. (2021) Jay Patel, Ken Chang, Katharina Hoebel, Mishka Gidwani, Nishanth Arun, Sharut Gupta, Mehak Aggarwal, Praveer Singh, Bruce R. Rosen, Elizabeth R. Gerstner, and Jayashree Kalpathy-Cramer. Segmentation, survival prediction, and uncertainty estimation of gliomas from multimodal 3d MRI using selective kernel networks. In Brainlesion: Glioma, Multiple Sclerosis, Stroke and Traumatic Brain Injuries, pages 228–240. Springer International Publishing, 2021. doi: 10.1007/978-3-030-72087-2˙20. URL https://doi.org/10.1007/978-3-030-72087-2_20.
  • Pati et al. (2021) Sarthak Pati, Ujjwal Baid, Maximilian Zenk, Brandon Edwards, Micah Sheller, G Anthony Reina, Patrick Foley, Alexey Gruzdev, Jason Martin, Shadi Albarqouni, et al. The federated tumor segmentation (fets) challenge. arXiv preprint arXiv:2105.05874, 2021.
  • Pei et al. (2019) Linmin Pei, Lasitha Vidyaratne, Wei-Wen Hsu, Md Monibor Rahman, and Khan M. Iftekharuddin. Brain tumor classification using 3d convolutional neural network. In Alessandro Crimi and Spyridon Bakas, editors, Brainlesion: Glioma, Multiple Sclerosis, Stroke and Traumatic Brain Injuries - 5th International Workshop, BrainLes 2019, Held in Conjunction with MICCAI 2019, Shenzhen, China, October 17, 2019, Revised Selected Papers, Part II, volume 11993 of Lecture Notes in Computer Science, pages 335–342. Springer, 2019. doi: 10.1007/978-3-030-46643-5“˙33. URL https://doi.org/10.1007/978-3-030-46643-5_33.
  • Pei et al. (2021) Linmin Pei, A. K. Murat, and Rivka Colen. Multimodal brain tumor segmentation and survival prediction using a 3d self-ensemble ResUNet. In Brainlesion: Glioma, Multiple Sclerosis, Stroke and Traumatic Brain Injuries, pages 367–375. Springer International Publishing, 2021. doi: 10.1007/978-3-030-72084-1˙33. URL https://doi.org/10.1007/978-3-030-72084-1_33.
  • Reinke et al. (2021) Annika Reinke, Matthias Eisenmann, Minu Dietlinde Tizabi, Carole H. Sudre, Tim Rädsch, Michela Antonelli, Tal Arbel, M. Jorge Cardoso, Veronika Cheplygina, Keyvan Farahani, Ben Glocker, Doreen Heckmann-Nötzel, Fabian Isensee, Pierre Jannin, Charles E. Kahn, Jens Kleesiek, Tahsin M. Kurç, Michal Kozubek, Bennett A. Landman, Geert Litjens, Klaus H. Maier-Hein, Bjoern H. Menze, Henning Müller, Jens Petersen, Mauricio Reyes, Nicola Rieke, Bram Stieltjes, Ronald M. Summers, Sotirios A. Tsaftaris, Bram van Ginneken, Annette Kopp-Schneider, Paul Jäger, and Lena Maier-Hein. Common limitations of image processing metrics: A picture story. CoRR, abs/2104.05642, 2021. URL https://arxiv.org/abs/2104.05642.
  • Rohlfing et al. (2010) Torsten Rohlfing, Natalie M Zahr, Edith V Sullivan, and Adolf Pfefferbaum. The sri24 multichannel atlas of normal adult human brain structure. Human brain mapping, 31(5):798–819, 2010.
  • Rosas-González et al. (2021) S. Rosas-González, I. Zemmoura, and C. Tauber. 3d brain tumor segmentation and survival prediction using ensembles of convolutional neural networks. In Brainlesion: Glioma, Multiple Sclerosis, Stroke and Traumatic Brain Injuries, pages 241–254. Springer International Publishing, 2021. doi: 10.1007/978-3-030-72087-2˙21. URL https://doi.org/10.1007/978-3-030-72087-2_21.
  • Shaw et al. (2021) Richard Shaw, Carole H Sudre, Sebastien Ourselin, M Jorge Cardoso, and Hugh G Pemberton. A decoupled uncertainty model for mri segmentation quality estimation. arXiv preprint arXiv:2109.02413, 2021.
  • Sheller et al. (2020) Micah J Sheller, Brandon Edwards, G Anthony Reina, Jason Martin, Sarthak Pati, Aikaterini Kotrotsou, Mikhail Milchenko, Weilin Xu, Daniel Marcus, Rivka R Colen, et al. Federated learning in medicine: facilitating multi-institutional collaborations without sharing patient data. Scientific reports, 10(1):1–12, 2020.
  • Simpson et al. (2019) Amber L Simpson, Michela Antonelli, Spyridon Bakas, Michel Bilello, Keyvan Farahani, Bram Van Ginneken, Annette Kopp-Schneider, Bennett A Landman, Geert Litjens, Bjoern Menze, et al. A large annotated medical image dataset for the development and evaluation of segmentation algorithms. arXiv preprint arXiv:1902.09063, 2019.
  • Skinner et al. (2019) John Skinner, David Hall, Haoyang Zhang, Feras Dayoub, and Niko Sünderhauf. The probabilistic object detection challenge. CoRR, abs/1903.07840, 2019. URL http://arxiv.org/abs/1903.07840.
  • Smith and Gal (2018) Lewis Smith and Yarin Gal. Understanding measures of uncertainty for adversarial example detection. arXiv preprint arXiv:1803.08533, 2018.
  • Sun et al. (2021) Yue Sun, Kun Gao, Zhengwang Wu, Guannan Li, Xiaopeng Zong, Zhihao Lei, Ying Wei, Jun Ma, Xiaoping Yang, Xue Feng, et al. Multi-site infant brain segmentation algorithms: The iseg-2019 challenge. IEEE Transactions on Medical Imaging, 40(5):1363–1376, 2021.
  • Sünderhauf et al. (2019) Niko Sünderhauf, Feras Dayoub, David Hall, John Skinner, Haoyang Zhang, Gustavo Carneiro, and Peter Corke. A probabilistic challenge for object detection. Nature Machine Intelligence, 1(9):443–443, September 2019. doi: 10.1038/s42256-019-0094-4. URL https://doi.org/10.1038/s42256-019-0094-4.
  • Tardy et al. (2019) Mickael Tardy, Bruno Scheffer, and Diana Mateus. Uncertainty measurements for the reliable classification of mammograms. In International Conference on Medical Image Computing and Computer-Assisted Intervention, pages 495–503. Springer, 2019.
  • Thakur et al. (2020) Siddhesh Thakur, Jimit Doshi, Sarthak Pati, Saima Rathore, Chiharu Sako, Michel Bilello, Sung Min Ha, Gaurav Shukla, Adam Flanders, Aikaterini Kotrotsou, et al. Brain extraction on mri scans in presence of diffuse glioma: Multi-institutional performance evaluation of deep learning methods and robust modality-agnostic training. NeuroImage, 220:117081, 2020.
  • Vadacchino et al. (2021) Saverio Vadacchino, Raghav Mehta, Nazanin Mohammadi Sepahvand, Brennan Nichyporuk, James J. Clark, and Tal Arbel. Had-net: A hierarchical adversarial knowledge distillation network for improved enhanced tumour segmentation without post-contrast images. In Mattias P. Heinrich, Qi Dou, Marleen de Bruijne, Jan Lellmann, Alexander Schlaefer, and Floris Ernst, editors, Medical Imaging with Deep Learning, 7-9 July 2021, Lübeck, Germany, volume 143 of Proceedings of Machine Learning Research, pages 787–801. PMLR, 2021. URL https://proceedings.mlr.press/v143/vadacchino21a.html.
  • Vu et al. (2019) Minh H. Vu, Tufve Nyholm, and Tommy Löfstedt. Tunet: End-to-end hierarchical brain tumor segmentation using cascaded networks. In Alessandro Crimi and Spyridon Bakas, editors, Brainlesion: Glioma, Multiple Sclerosis, Stroke and Traumatic Brain Injuries - 5th International Workshop, BrainLes 2019, Held in Conjunction with MICCAI 2019, Shenzhen, China, October 17, 2019, Revised Selected Papers, Part I, volume 11992 of Lecture Notes in Computer Science, pages 174–186. Springer, 2019. doi: 10.1007/978-3-030-46640-4“˙17. URL https://doi.org/10.1007/978-3-030-46640-4_17.
  • Vu et al. (2021) Minh H. Vu, Tufve Nyholm, and Tommy Löfstedt. Multi-decoder networks with multi-denoising inputs for tumor segmentation. In Brainlesion: Glioma, Multiple Sclerosis, Stroke and Traumatic Brain Injuries, pages 412–423. Springer International Publishing, 2021. doi: 10.1007/978-3-030-72084-1˙37. URL https://doi.org/10.1007/978-3-030-72084-1_37.
  • Wang et al. (2018) Guotai Wang, Wenqi Li, Maria A. Zuluaga, Rosalind Pratt, Premal A. Patel, Michael Aertsen, Tom Doel, Anna L. David, Jan Deprest, Sébastien Ourselin, and Tom Vercauteren. Interactive medical image segmentation using deep learning with image-specific fine tuning. IEEE Trans. Medical Imaging, 37(7):1562–1573, 2018. doi: 10.1109/TMI.2018.2791721. URL https://doi.org/10.1109/TMI.2018.2791721.
  • Wen et al. (2020) Yeming Wen, Dustin Tran, and Jimmy Ba. Batchensemble: an alternative approach to efficient ensemble and lifelong learning. arXiv preprint arXiv:2002.06715, 2020.
  • Zech et al. (2018) John R Zech, Marcus A Badgeley, Manway Liu, Anthony B Costa, Joseph J Titano, and Eric Karl Oermann. Variable generalization performance of a deep learning model to detect pneumonia in chest radiographs: a cross-sectional study. PLoS medicine, 15(11):e1002683, 2018.

Appendix A - Box plots for individual scores

This appendix provides box plots for four different scores (DICE_AUC, FTP_RATIO_AUC, FTN_RATIO_AUC, and Score - Equation 1) for three different tumor entities (WT, TC, and ET) for each team. The teams are ranked from better to worse performance according to mean values across all patients for each score. Higher is better for DICE_AUC (Figure 15 - Figure 17) and Score (Figure 24 - Figure 26), while lower is better for FTP_RATIO_AUC (Figure 18 - Figure 20) and FTN_RATIO_AUC (Figure 21 - Figure 23).

Note that these box plots are different from ranking plots, as the ranking plots describe the overall performance across different tumor entities and different subjects as described in Section 5.1. From these plots, we can see that while for all three tumor entity DICE_AUC plots, Team nsu_btr performs better than other teams, their overall Score is comparatively lower than other teams as they do not perform well for FTP_RATIO_AUC and FTN_RATIO_AUC.

Similarly, we also observe that Team SCAN does not outperform other teams for DICE_AUC but comfortably outperforms other teams in FTP_RATIO_AUC. They perform relatively similar to other top-ranked teams in the FTN_RATIO_AUC score. Overall, they achieve the best performance for the Score across all three tumor entities. The main reason for them outperforming other teams for FTP_RATIO_AUC is how they developed their uncertainty generation method. They found that they achieved the best results on the given Score (Equation 1) by considering all positive predictions as certain (Section 4.3.1).

In terms of overall Scores, we observe that Team SCAN comfortably outperforms all other teams for each tumor entity. Team QTIM and Team Uniandes report better mean scores across different patients compared to Team SCAN. Despite this, they do not achieve an overall better ranking for each patient, which shows the usefulness of reporting ranking and statistical-significance analysis across different patients rather than just reporting mean overall Score across patients.

Refer to caption
Figure 15: QU-BraTS 2020 boxplots depicting DICE_AUC distribution for all teams across different participants for Whole Tumor on the BraTS 2020 test set (higher is better).
Refer to caption
Figure 16: QU-BraTS 2020 boxplots depicting DICE_AUC distribution for all teams across different participants for Tumor Core on the BraTS 2020 test set (higher is better).
Refer to caption
Figure 17: QU-BraTS 2020 boxplots depicting DICE_AUC distribution for all teams across different participants for Enhancing Tumor on the BraTS 2020 test set (higher is better).
Refer to caption
Figure 18: QU-BraTS 2020 boxplots depicting FTP_RATIO_AUC distribution for all teams across different participants for Whole Tumor on the BraTS 2020 test set (lower is better).
Refer to caption
Figure 19: QU-BraTS 2020 boxplots depicting FTP_RATIO_AUC distribution for all teams across different participants for Tumor Core on the BraTS 2020 test set (lower is better).
Refer to caption
Figure 20: QU-BraTS 2020 boxplots depicting FTP_RATIO_AUC distribution for all teams across different participants for Enhancing Tumor on the BraTS 2020 test set (lower is better).
Refer to caption
Figure 21: QU-BraTS 2020 boxplots depicting FTN_RATIO_AUC distribution for all teams across different participants for Whole Tumor on the BraTS 2020 test set (lower is better).
Refer to caption
Figure 22: QU-BraTS 2020 boxplots depicting FTN_RATIO_AUC distribution for all teams across different participants for Tumor Core on the BraTS 2020 test set (lower is better).
Refer to caption
Figure 23: QU-BraTS 2020 boxplots depicting FTN_RATIO_AUC distribution for all teams across different participants for Enhancing Tumor on the BraTS 2020 test set (lower is better).
Refer to caption
Figure 24: QU-BraTS 2020 boxplots depicting Score distribution for all teams across different participants for Whole Tumor on the BraTS 2020 test set (higher is better).
Refer to caption
Figure 25: QU-BraTS 2020 boxplots depicting Score distribution for all teams across different participants for Tumor Core on the BraTS 2020 test set (higher is better).
Refer to caption
Figure 26: QU-BraTS 2020 boxplots depicting Score distribution for all teams across different participants for Enhancing Tumor on the BraTS 2020 test set (higher is better).
Refer to caption
Figure 27: QU-BraTS 2020 boxplots depicting overall Score distribution for all teams across different participants on the BraTS 2020 test set (higher is better).

Appendix B - QU-BraTS 2019

In this appendix, we analyze and briefly describe methods employed by participating teams in BraTS 2019 sub-challenge on uncertainty quantification. A total of 15 teams participated in the challenge. From these 15 teams, five teams further participated during the following QU-BraTS 2020 challenge.

BraTS 2019 dataset: As described in Section 3.1, BraTS 2019 dataset contains 335 patient MRIs in the training set, 125 in the validation set, and 166 in the testing set. All teams developed their method using the training set and the validation set. Ground truth segmentation for the validation set was not publicly available for the teams. The final performance of all teams was measured on the testing set, where each team had access to a 48-hour window to upload their result to the server (https://ipp.cbica.upenn.edu/).

QU-BraTS 2019 results on the test set: We ran the task of uncertainty quantification preliminary during the challenge and did not employ any ranking scheme. Also, the score used during the challenge was different from the one described in Section 3. Precisely, we did not calculate the AUC of Ratio of Filtered True Negatives vs. Uncertainty threshold until the validation phase was ended; and only used AUCs of DSC𝐷𝑆𝐶DSC vs. Uncertainty Threshold and Ratio of Filtered True Positives vs. Uncertainty Threshold. After the validation phase, using qualitative inspection, we found that many teams were employing 1 - softmax confidence as an uncertainty measure, which is not helpful from a real clinical point of view as described in Section 3 and Section 5.3. Keeping this in mind, we added the AUC of Ratio of Filtered True Negatives vs. Uncertainty threshold during the final testing phase. Table 3 lists all team names and their performance on the BraTS 2019 test phase. The table shows that teams that employed 1 - softmax_confidence as uncertainty measure performed poorly on FTN_RATIO_AUC score (Ex. Team Alpaca, Team DRAG, Team ODU_vision_lab, etc.). We want to point out that we did not employ the ranking strategy used in the QU-BraTS 2020 challenge during the QU-BraTS 2019 challenge. As we discussed in Appendix A, the ranking strategy and statistical significance analysis reflect the true potential of the method compared to just ranking teams according to their mean performance across testing cases.

Table 3: Final performance on the BraTS 2019 testing dataset for teams participating in the preliminary challenge on quantification of uncertainty in brain tumor segmentation task. Here, mean values for each score across all patient in the testing dataset is listed.
Team#casesDICE_AUCFTP_RATIO_AUCFTN_RATIO_AUCScoreoverallScore
WTTCETWTTCETWTTCETWTTCET
SCAN (McKinley et al., 2019)1660.88370.82530.82090.03580.07710.149580.019190.00760.00600.94290.91350.88850.9150
RADIOMICS-MIU (Banerjee et al., 2019a)1660.85950.81220.77590.04210.09060.120090.003800.00120.00080.93790.90680.88500.9099
UmU (Vu et al., 2019)1660.85200.80770.78920.06020.12290.140890.003340.01500.00100.92950.88990.88240.9006
xuefeng (Feng et al., 2019)1660.87460.84320.81200.08940.16420.272160.009690.00490.00240.92520.89140.84580.8874
UTintelligence (Amian and Soltaninejad, 2019)1620.78000.67870.66880.01170.05280.129010.000000.00000.00000.92280.87530.84660.8816
NVDLMED (Myronenko and Hatamizadeh, 2019)1660.86510.82030.82510.02130.06790.109580.493260.38830.27010.78350.78810.81510.7956
FightGliomas1660.82750.77830.45830.31720.23120.510280.002390.00080.00070.83600.84880.64910.7779
NIC-VICOROB1660.30770.68830.63930.53800.04580.080120.000000.00000.00000.58990.88080.85310.7746
LRDE_2 (Boutry et al., 2019)1660.88510.83870.77250.59300.70170.261590.053120.04390.01960.74630.69770.83040.7581
LRDE_VGG (Boutry et al., 2019)1660.88100.78830.63030.49300.73130.836450.044600.02800.01850.78120.67640.59180.6831
ANSIR1660.87270.85510.83490.01240.07650.112490.925000.92500.92500.64510.61790.59920.6207
med_vision (Pei et al., 2019)1660.87940.85120.84910.02030.07680.132090.924350.92530.92570.64490.61640.59710.6195
TEAM_ALPACA (Murugesan et al., 2019)1660.87680.83770.81160.01910.07070.106950.916390.91700.92280.64710.61670.59400.6192
ODU_vision_lab1660.87890.85170.84810.02120.07760.132830.924440.92530.92570.64440.61620.59650.6191
DRAG (Baid et al., 2019)1610.88900.85180.81050.07260.13120.137920.922800.92410.92430.63120.59890.58280.6043
